SDO HMI 2012-05-10 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.97 | 0.00 | 5.18 | 17.57 | 224.18 | 23.53 | 312.71 | 0.5197 | 431.8 | 400.1 | |
|
previous
or next observation for the same group /

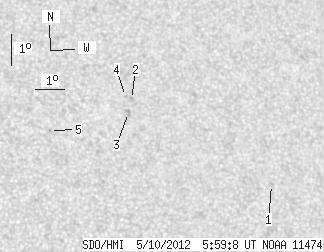

back to the solar disc SDO HMI 2012-05-10 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.11 | 15.76 | 228.10 | 27.44 | 305.66 | 0.5480 | -641.0 | -514.8 | |
| 0.00 | 1.97 | 0.00 | 1.14 | 18.39 | 223.57 | 22.92 | 314.50 | 0.5201 | 643.0 | 534.5 | |
| 0.00 | 3.32 | 0.00 | 1.91 | 17.96 | 223.41 | 22.76 | 314.08 | 0.5142 | 741.0 | 731.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.48 | 223.38 | 22.72 | 314.87 | 0.5190 | 610.0 | 560.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.32 | 220.63 | 19.98 | 316.75 | 0.4779 | 806.0 | 694.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
