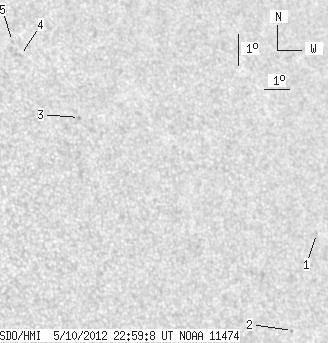

SDO HMI 2012-05-10 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.38 | 0.00 | 3.54 | 14.88 | 228.09 | 36.81 | 297.66 | 0.6565 | 391.6 | 283.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-10 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.76 | 12.67 | 234.37 | 43.09 | 291.12 | 0.7168 | -610.0 | -554.5 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 9.58 | 232.81 | 41.53 | 287.50 | 0.6878 | 580.0 | 440.4 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 16.03 | 225.54 | 34.25 | 300.50 | 0.6301 | 660.0 | 546.8 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 17.97 | 223.69 | 32.41 | 304.59 | 0.6214 | 715.0 | 581.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 18.42 | 223.48 | 32.20 | 305.37 | 0.6222 | 613.0 | 468.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
