SDO HMI 2012-07-14 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 486.62 | 2551.32 | 282.35 | 1482.01 | -15.96 | 82.97 | 24.12 | 228.93 | 0.5220 | 413.5 | 89.2 | |
|
previous
or next observation for the same group /

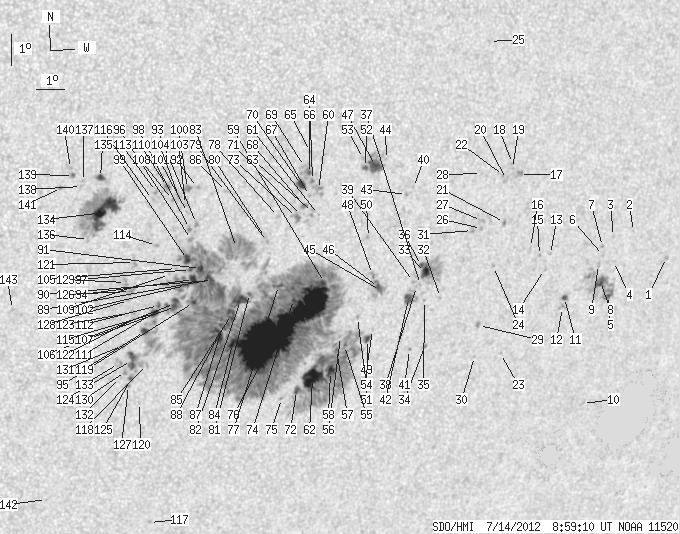

back to the solar disc SDO HMI 2012-07-14 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.16 | -14.80 | 97.39 | 38.54 | 242.67 | 0.6804 | 739.0 | 605.1 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -13.89 | 95.89 | 37.04 | 243.04 | 0.6584 | 578.0 | 480.4 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -14.01 | 95.13 | 36.28 | 242.40 | 0.6501 | 650.0 | 531.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -14.82 | 95.28 | 36.44 | 241.37 | 0.6564 | 697.0 | 545.8 | |
| 1.09 | 43.78 | 0.72 | 28.68 | -15.92 | 95.31 | 36.46 | 239.88 | 0.6630 | 581.3 | 545.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -14.61 | 94.85 | 36.00 | 241.39 | 0.6502 | 765.0 | 672.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -14.32 | 94.75 | 35.91 | 241.74 | 0.6475 | 808.0 | 644.2 | |
| 7.90 | -5.00 | 5.17 | -5.00 | -15.45 | 94.90 | 36.05 | 240.26 | 0.6556 | 824.4 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.48 | -14.89 | 94.71 | 35.86 | 240.90 | 0.6502 | 773.0 | 680.8 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -19.45 | 95.11 | 36.26 | 235.10 | 0.6823 | 523.0 | 418.6 | |
| 2.54 | 3.09 | 1.64 | 1.99 | -15.91 | 93.59 | 34.74 | 238.75 | 0.6434 | 819.1 | 628.7 | |
| 0.00 | 2.91 | 0.00 | 1.88 | -16.23 | 93.57 | 34.73 | 238.29 | 0.6452 | 593.0 | 546.3 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.49 | 92.78 | 33.94 | 240.19 | 0.6252 | -570.0 | -443.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -14.96 | 92.64 | 33.80 | 239.41 | 0.6265 | -271.0 | -371.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -14.50 | 92.37 | 33.52 | 239.88 | 0.6204 | -598.0 | -447.1 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -14.23 | 91.98 | 33.14 | 240.00 | 0.6141 | -501.0 | -394.6 | |
| 0.00 | 4.72 | 0.00 | 2.89 | -11.87 | 91.22 | 32.37 | 242.99 | 0.5903 | -711.0 | -646.8 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -11.51 | 90.91 | 32.07 | 243.34 | 0.5843 | -739.0 | -628.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -11.67 | 90.93 | 32.09 | 243.10 | 0.5855 | -760.0 | -644.9 | |
| 0.00 | 3.63 | 0.00 | 2.22 | -12.01 | 90.76 | 31.91 | 242.45 | 0.5854 | -671.0 | -584.2 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -13.38 | 90.88 | 32.03 | 240.44 | 0.5954 | -737.0 | -578.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -11.88 | 90.63 | 31.79 | 242.56 | 0.5830 | -803.0 | -659.5 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -17.64 | 91.48 | 32.64 | 234.81 | 0.6311 | 525.0 | 415.2 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -14.78 | 90.69 | 31.85 | 238.22 | 0.6024 | -735.0 | -683.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -7.63 | 89.68 | 30.83 | 248.87 | 0.5467 | -658.0 | -482.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -13.54 | 90.05 | 31.21 | 239.58 | 0.5864 | -667.0 | -569.5 | |
| 0.00 | 3.09 | 0.00 | 1.88 | -13.28 | 90.02 | 31.17 | 239.94 | 0.5842 | -773.0 | -665.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -11.78 | 89.81 | 30.97 | 242.11 | 0.5721 | -582.0 | -481.6 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -16.68 | 90.47 | 31.62 | 235.32 | 0.6129 | 789.0 | 716.6 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.70 | 90.51 | 31.67 | 233.95 | 0.6208 | 522.0 | 398.9 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -13.59 | 89.73 | 30.89 | 239.25 | 0.5828 | -742.0 | -596.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -15.71 | 88.89 | 30.04 | 235.39 | 0.5877 | 566.0 | 334.3 | |
| 5.54 | 44.69 | 3.34 | 27.03 | -14.88 | 88.21 | 29.37 | 236.04 | 0.5736 | -993.6 | -229.2 | |
| 0.00 | 2.27 | 0.00 | 1.40 | -17.29 | 88.57 | 29.73 | 232.85 | 0.5961 | 673.0 | 590.7 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -15.79 | 88.32 | 29.47 | 234.78 | 0.5816 | -486.0 | -340.9 | |
| 1.91 | -33.00 | 1.15 | -33.00 | -14.65 | 88.03 | 29.19 | 236.23 | 0.5697 | -926.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -15.26 | 88.09 | 29.24 | 235.36 | 0.5750 | -573.0 | -463.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -15.32 | 87.95 | 29.11 | 235.15 | 0.5738 | -703.0 | -571.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -15.15 | 87.82 | 28.97 | 235.28 | 0.5710 | -800.0 | -675.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.13 | 87.41 | 28.57 | 239.63 | 0.5440 | -645.0 | -514.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -17.37 | 88.03 | 29.19 | 232.26 | 0.5908 | 754.0 | 669.8 | |
| 7.27 | 14.53 | 4.39 | 8.78 | -15.70 | 87.72 | 28.88 | 234.38 | 0.5741 | -729.8 | -582.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -12.35 | 87.19 | 28.34 | 239.09 | 0.5427 | -802.0 | -664.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -11.21 | 86.36 | 27.51 | 240.24 | 0.5240 | -415.0 | -289.5 | |
| 1.73 | 18.71 | 1.03 | 11.15 | -15.40 | 86.67 | 27.82 | 233.84 | 0.5594 | 280.2 | -120.6 | |
| 2.72 | -45.00 | 1.62 | -45.00 | -15.30 | 86.58 | 27.74 | 233.91 | 0.5576 | -406.0 | 999999 | |
| 12.90 | 28.16 | 7.47 | 16.31 | -11.38 | 85.99 | 27.14 | 239.61 | 0.5205 | -885.5 | -562.9 | |
| 0.00 | 4.27 | 0.00 | 2.53 | -14.87 | 86.31 | 27.46 | 234.30 | 0.5510 | -808.0 | -644.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -16.66 | 86.57 | 27.73 | 231.89 | 0.5686 | -624.0 | -523.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -13.67 | 86.01 | 27.16 | 235.88 | 0.5379 | -644.0 | -520.5 | |
| 2.72 | 2007.11 | 1.64 | 1166.19 | -16.99 | 86.44 | 27.60 | 231.31 | 0.5698 | -436.5 | 208.9 | |
| 2.27 | -47.00 | 1.31 | -47.00 | -11.43 | 85.65 | 26.80 | 239.21 | 0.5165 | -897.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -11.15 | 85.55 | 26.70 | 239.61 | 0.5131 | -884.0 | -630.8 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -16.25 | 85.97 | 27.13 | 231.90 | 0.5583 | 390.0 | 340.2 | |
| 1.00 | -51.00 | 0.60 | -51.00 | -17.15 | 85.65 | 26.80 | 230.27 | 0.5623 | 529.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -16.85 | 85.46 | 26.61 | 230.51 | 0.5576 | -135.0 | -148.7 | |
| 1.27 | -51.00 | 0.76 | -51.00 | -17.27 | 85.38 | 26.53 | 229.82 | 0.5604 | 408.1 | 999999 | |
| 5.90 | -51.00 | 3.54 | -51.00 | -17.99 | 85.28 | 26.43 | 228.70 | 0.5657 | 854.8 | 999999 | |
| 1.73 | -51.00 | 1.01 | -51.00 | -15.07 | 84.64 | 25.79 | 232.32 | 0.5329 | 1112.8 | 999999 | |
| 0.00 | 9.08 | 0.00 | 5.19 | -12.08 | 84.08 | 25.24 | 236.59 | 0.5014 | -755.0 | -633.1 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -12.88 | 84.17 | 25.32 | 235.33 | 0.5089 | -199.0 | -345.0 | |
| 27.70 | -51.00 | 16.55 | -51.00 | -18.20 | 84.67 | 25.82 | 227.77 | 0.5610 | 981.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.77 | -12.81 | 83.95 | 25.11 | 235.23 | 0.5057 | -370.0 | -367.3 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -11.78 | 83.85 | 25.00 | 236.85 | 0.4961 | -807.0 | -774.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -10.86 | 83.69 | 24.85 | 238.31 | 0.4869 | -899.0 | -787.6 | |
| 2.27 | 8.17 | 1.29 | 4.64 | -11.56 | 83.72 | 24.88 | 237.11 | 0.4927 | -905.6 | -888.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -12.26 | 83.79 | 24.94 | 235.98 | 0.4992 | -803.0 | -633.5 | |
| 1.73 | 3.36 | 0.99 | 1.92 | -12.57 | 83.65 | 24.80 | 235.30 | 0.5000 | -733.0 | -699.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -11.33 | 83.53 | 24.68 | 237.31 | 0.4885 | -738.0 | -759.1 | |
| 6.18 | 7.18 | 3.51 | 4.08 | -11.90 | 83.48 | 24.63 | 236.27 | 0.4924 | -1088.1 | -836.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -12.89 | 83.58 | 24.73 | 234.69 | 0.5018 | -383.0 | -393.5 | |
| 3.54 | -51.00 | 2.11 | -51.00 | -18.58 | 84.16 | 25.31 | 226.69 | 0.5591 | 767.5 | 999999 | |
| 0.00 | 5.99 | 0.00 | 3.43 | -12.95 | 83.41 | 24.57 | 234.42 | 0.5002 | -765.0 | -651.2 | |
| 1.09 | -51.00 | 0.63 | -51.00 | -15.59 | 83.62 | 24.77 | 230.43 | 0.5257 | 1415.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -18.83 | 83.66 | 24.82 | 225.81 | 0.5562 | 533.0 | 397.3 | |
| 243.05 | -51.00 | 141.86 | -51.00 | -16.58 | 83.23 | 24.38 | 228.50 | 0.5304 | 1507.3 | 999999 | |
| 3.54 | -51.00 | 2.04 | -51.00 | -15.12 | 83.04 | 24.19 | 230.50 | 0.5147 | 1034.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -12.90 | 82.79 | 23.94 | 233.82 | 0.4921 | -788.0 | -569.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -13.68 | 82.50 | 23.65 | 232.17 | 0.4955 | 433.0 | 293.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.55 | 82.41 | 23.57 | 232.29 | 0.4933 | 589.0 | 404.0 | |
| 1.54 | -51.00 | 0.89 | -51.00 | -15.34 | 82.07 | 23.22 | 229.01 | 0.5057 | 862.4 | 999999 | |
| 12.17 | -51.00 | 6.97 | -51.00 | -15.56 | 81.78 | 22.94 | 228.33 | 0.5045 | 836.7 | 999999 | |
| 0.00 | 66.58 | 0.00 | 37.66 | -13.84 | 81.45 | 22.61 | 230.67 | 0.4845 | -528.0 | -411.1 | |
| 3.36 | -51.00 | 1.94 | -51.00 | -16.96 | 81.68 | 22.83 | 226.12 | 0.5170 | 1212.0 | 999999 | |
| 7.08 | -51.00 | 4.06 | -51.00 | -16.01 | 81.53 | 22.68 | 227.34 | 0.5060 | 1136.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -12.04 | 80.94 | 22.10 | 233.12 | 0.4619 | -636.0 | -530.6 | |
| 3.72 | -51.00 | 2.14 | -51.00 | -16.39 | 81.26 | 22.42 | 226.44 | 0.5069 | 1019.0 | 999999 | |
| 9.26 | -51.00 | 5.32 | -51.00 | -16.68 | 81.16 | 22.31 | 225.88 | 0.5087 | 1056.2 | 999999 | |
| 1.91 | -51.00 | 1.08 | -51.00 | -14.85 | 80.74 | 21.90 | 228.15 | 0.4859 | 234.0 | 999999 | |
| 5.36 | -51.00 | 3.03 | -51.00 | -14.88 | 80.64 | 21.80 | 227.98 | 0.4851 | -691.9 | 999999 | |
| 3.45 | -51.00 | 1.94 | -51.00 | -14.49 | 80.30 | 21.45 | 228.16 | 0.4772 | -1059.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -11.89 | 79.96 | 21.11 | 232.15 | 0.4482 | -763.0 | -602.4 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -13.04 | 80.02 | 21.18 | 230.22 | 0.4599 | -835.0 | -790.2 | |
| 5.81 | -51.00 | 3.28 | -51.00 | -14.83 | 80.10 | 21.25 | 227.34 | 0.4784 | -1053.4 | 999999 | |
| 1.63 | -51.00 | 0.93 | -51.00 | -15.58 | 80.18 | 21.33 | 226.28 | 0.4868 | -746.2 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.83 | -13.54 | 79.90 | 21.06 | 229.19 | 0.4634 | -1013.0 | -810.0 | |
| 1.63 | -51.00 | 0.92 | -51.00 | -14.51 | 79.96 | 21.12 | 227.68 | 0.4736 | -1068.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -13.19 | 79.80 | 20.96 | 229.66 | 0.4587 | -950.0 | -880.3 | |
| 5.81 | -51.00 | 3.26 | -51.00 | -14.18 | 79.83 | 20.98 | 228.03 | 0.4688 | -1130.1 | 999999 | |
| 0.00 | 4.63 | 0.00 | 2.56 | -11.91 | 79.63 | 20.78 | 231.67 | 0.4444 | -891.0 | -857.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -12.68 | 79.69 | 20.85 | 230.40 | 0.4524 | -882.0 | -675.1 | |
| 3.54 | -51.00 | 1.99 | -51.00 | -15.02 | 79.85 | 21.00 | 226.71 | 0.4775 | -1005.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.42 | 79.60 | 20.76 | 230.73 | 0.4489 | -904.0 | -792.8 | |
| 0.00 | 3.63 | 0.00 | 2.01 | -12.13 | 79.34 | 20.50 | 230.91 | 0.4430 | -952.0 | -797.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -14.46 | 79.49 | 20.64 | 227.11 | 0.4677 | -862.0 | -684.8 | |
| 1.27 | -51.00 | 0.72 | -51.00 | -15.69 | 79.58 | 20.73 | 225.30 | 0.4814 | 197.3 | 999999 | |
| 5.63 | -51.00 | 3.18 | -51.00 | -15.59 | 79.53 | 20.69 | 225.39 | 0.4799 | -555.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.25 | 79.15 | 20.31 | 230.43 | 0.4418 | -963.0 | -927.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.65 | 79.27 | 20.42 | 226.51 | 0.4672 | -909.0 | -718.3 | |
| 1.91 | 3.09 | 1.05 | 1.70 | -11.83 | 78.96 | 20.11 | 230.91 | 0.4354 | -900.6 | -812.8 | |
| 1.82 | -51.00 | 1.02 | -51.00 | -15.65 | 79.27 | 20.42 | 224.94 | 0.4776 | -640.8 | 999999 | |
| 2.00 | -51.00 | 1.12 | -51.00 | -15.64 | 79.00 | 20.15 | 224.58 | 0.4746 | -849.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -11.98 | 78.60 | 19.76 | 230.15 | 0.4325 | -911.0 | -812.7 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -13.70 | 78.74 | 19.90 | 227.33 | 0.4516 | -965.0 | -725.7 | |
| 5.09 | -51.00 | 2.86 | -51.00 | -15.90 | 78.89 | 20.04 | 224.03 | 0.4762 | -806.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -12.23 | 78.49 | 19.64 | 229.53 | 0.4336 | -804.0 | -637.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -22.88 | 79.64 | 20.79 | 215.87 | 0.5603 | -754.0 | -611.5 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -17.56 | 78.80 | 19.96 | 221.47 | 0.4933 | -99.0 | -121.2 | |
| 4.27 | -51.00 | 2.41 | -51.00 | -16.48 | 78.61 | 19.77 | 222.77 | 0.4795 | -925.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -18.81 | 78.71 | 19.87 | 219.64 | 0.5063 | -756.0 | -647.3 | |
| 0.00 | 5.45 | 0.00 | 3.02 | -14.23 | 78.06 | 19.21 | 225.47 | 0.4493 | -694.0 | -651.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -16.08 | 78.20 | 19.36 | 222.78 | 0.4708 | -852.0 | -673.0 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -15.85 | 78.14 | 19.30 | 223.04 | 0.4677 | -702.0 | -754.3 | |
| 8.54 | -51.00 | 4.84 | -51.00 | -17.42 | 78.28 | 19.43 | 220.93 | 0.4864 | -813.9 | 999999 | |
| 1.63 | -51.00 | 0.93 | -51.00 | -18.04 | 78.31 | 19.47 | 220.12 | 0.4938 | -780.1 | 999999 | |
| 0.00 | 5.90 | 0.00 | 3.29 | -15.16 | 78.01 | 19.16 | 223.90 | 0.4588 | -1000.0 | -754.8 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -18.24 | 78.27 | 19.42 | 219.78 | 0.4955 | -775.0 | -626.2 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -15.45 | 77.97 | 19.13 | 223.39 | 0.4616 | -829.0 | -672.7 | |
| 0.00 | 3.91 | 0.00 | 2.17 | -14.87 | 77.82 | 18.97 | 224.08 | 0.4535 | -883.0 | -749.4 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -17.77 | 78.11 | 19.27 | 220.20 | 0.4888 | -959.0 | -786.5 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -16.92 | 77.92 | 19.07 | 221.13 | 0.4772 | -957.0 | -753.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -17.97 | 77.96 | 19.12 | 219.72 | 0.4895 | -770.0 | -604.8 | |
| 0.00 | 5.18 | 0.00 | 2.93 | -17.50 | 77.84 | 19.00 | 220.19 | 0.4831 | -763.0 | -791.7 | |
| 35.24 | 114.35 | 19.21 | 62.26 | -12.60 | 76.93 | 18.09 | 226.53 | 0.4192 | -1095.7 | -583.7 | |
| 4.00 | 5.72 | 2.16 | 3.10 | -11.49 | 76.72 | 17.88 | 228.25 | 0.4050 | -979.6 | -696.1 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -13.45 | 76.47 | 17.63 | 224.32 | 0.4233 | -293.0 | -305.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -11.60 | 76.18 | 17.33 | 227.15 | 0.3997 | -294.0 | -254.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -11.76 | 76.12 | 17.28 | 226.77 | 0.4008 | -722.0 | -478.6 | |
| 1.36 | 2.45 | 0.73 | 1.32 | -11.40 | 75.84 | 16.99 | 226.96 | 0.3936 | 721.3 | 651.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -11.18 | 75.73 | 16.88 | 227.20 | 0.3899 | 791.0 | 613.7 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -11.78 | 75.47 | 16.63 | 225.64 | 0.3934 | 889.0 | 670.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.00 | 75.92 | 17.07 | 211.74 | 0.5194 | -773.0 | -547.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.66 | 74.14 | 15.30 | 216.87 | 0.4252 | -703.0 | -555.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
