SDO HMI 2012-10-15 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.20 | 542.10 | 69.60 | 384.85 | 7.38 | 228.68 | -45.92 | 85.39 | 0.7166 | -720.8 | -135.0 | |
|
previous
or next observation for the same group /

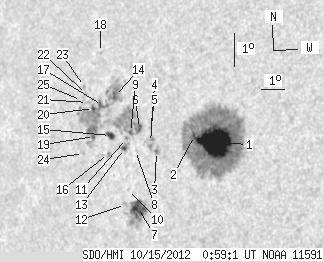

back to the solar disc SDO HMI 2012-10-15 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.09 | 337.14 | 38.60 | 232.23 | 7.40 | 230.37 | -44.23 | 85.41 | 0.6963 | -1291.0 | -325.7 | |
| 1.05 | -1.00 | 0.73 | -1.00 | 7.55 | 229.46 | -45.14 | 85.18 | 0.7076 | -415.6 | 999999 | |
| 1.31 | 3.23 | 0.94 | 2.32 | 6.95 | 227.88 | -46.72 | 85.97 | 0.7268 | -751.3 | -587.6 | |
| 0.00 | 7.60 | 0.00 | 5.49 | 7.20 | 227.58 | -47.02 | 85.62 | 0.7303 | -547.0 | -576.1 | |
| 0.00 | 1.14 | 0.00 | 0.82 | 7.62 | 227.52 | -47.08 | 85.04 | 0.7308 | -544.0 | -440.7 | |
| 3.23 | 134.46 | 2.36 | 100.87 | 7.58 | 227.04 | -47.56 | 85.08 | 0.7366 | -684.2 | 322.4 | |
| 18.08 | 33.29 | 13.16 | 24.24 | 5.20 | 227.28 | -47.32 | 88.34 | 0.7348 | -748.2 | -359.4 | |
| 0.00 | 0.96 | 0.00 | 0.70 | 6.91 | 226.95 | -47.65 | 85.99 | 0.7378 | -448.0 | -354.5 | |
| 1.40 | -6.00 | 1.03 | -6.00 | 7.43 | 226.65 | -47.95 | 85.27 | 0.7411 | -664.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 5.73 | 226.78 | -47.82 | 87.58 | 0.7403 | -458.0 | -364.0 | |
| 0.00 | 0.96 | 0.00 | 0.71 | 7.24 | 226.50 | -48.10 | 85.53 | 0.7430 | -702.0 | -608.5 | |
| 0.00 | 2.62 | 0.00 | 1.93 | 5.27 | 226.69 | -47.91 | 88.20 | 0.7416 | 218.0 | 141.8 | |
| 1.75 | 5.24 | 1.29 | 3.87 | 6.94 | 226.45 | -48.15 | 85.94 | 0.7436 | -573.8 | -546.0 | |
| 2.80 | -6.00 | 2.09 | -6.00 | 8.45 | 225.76 | -48.83 | 83.89 | 0.7512 | 875.5 | 999999 | |
| 4.46 | 5.77 | 3.33 | 4.31 | 7.28 | 225.76 | -48.84 | 85.46 | 0.7514 | -521.1 | -350.9 | |
| 1.05 | 2.36 | 0.78 | 1.76 | 6.73 | 225.75 | -48.85 | 86.18 | 0.7518 | -218.0 | -215.1 | |
| 5.50 | -6.00 | 4.16 | -6.00 | 8.14 | 225.26 | -49.34 | 84.30 | 0.7570 | 713.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.00 | 9.71 | 224.88 | -49.72 | 82.22 | 0.7613 | 637.0 | 505.9 | |
| 0.26 | -6.00 | 0.20 | -6.00 | 7.19 | 225.04 | -49.56 | 85.55 | 0.7597 | 53.0 | 999999 | |
| 1.22 | -6.00 | 0.93 | -6.00 | 8.02 | 224.86 | -49.74 | 84.45 | 0.7615 | 849.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 8.18 | 224.55 | -50.05 | 84.24 | 0.7650 | 338.0 | 319.1 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 8.41 | 224.46 | -50.14 | 83.93 | 0.7659 | 445.0 | 339.4 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 8.64 | 224.33 | -50.27 | 83.63 | 0.7674 | 350.0 | 413.9 | |
| 0.00 | 1.05 | 0.00 | 0.80 | 6.65 | 224.60 | -50.00 | 86.25 | 0.7649 | 707.0 | 570.5 | |
| 0.00 | 0.96 | 0.00 | 0.74 | 8.21 | 224.26 | -50.34 | 84.18 | 0.7682 | 445.0 | 417.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
