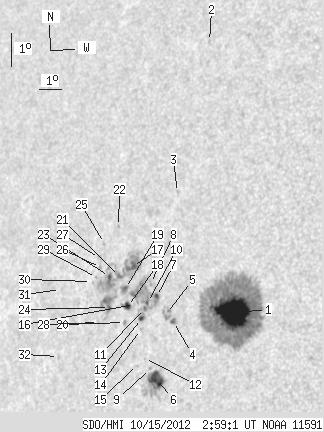

SDO HMI 2012-10-15 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.30 | 554.54 | 63.49 | 386.46 | 7.41 | 228.67 | -44.83 | 85.37 | 0.7033 | -653.0 | -143.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-15 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.74 | 342.63 | 36.32 | 231.90 | 7.41 | 230.35 | -43.15 | 85.40 | 0.6827 | -1348.2 | -332.7 | |
| 0.00 | 1.14 | 0.00 | 0.81 | 15.43 | 227.74 | -45.76 | 74.15 | 0.7203 | -313.0 | -338.2 | |
| 0.00 | 1.22 | 0.00 | 0.87 | 10.82 | 227.42 | -46.08 | 80.59 | 0.7195 | -498.0 | -377.7 | |
| 1.22 | 2.36 | 0.86 | 1.66 | 6.96 | 227.87 | -45.63 | 85.98 | 0.7137 | -801.0 | -613.8 | |
| 0.00 | 7.95 | 0.00 | 5.64 | 7.18 | 227.54 | -45.97 | 85.67 | 0.7177 | -565.0 | -578.5 | |
| 13.72 | 34.17 | 9.78 | 24.39 | 5.21 | 227.32 | -46.18 | 88.40 | 0.7212 | -802.9 | -357.7 | |
| 2.18 | 49.37 | 1.56 | 35.65 | 7.65 | 227.03 | -46.47 | 84.99 | 0.7236 | -643.4 | -74.8 | |
| 0.00 | 1.92 | 0.00 | 1.38 | 8.02 | 226.72 | -46.78 | 84.48 | 0.7274 | -467.0 | -304.5 | |
| 0.00 | 1.22 | 0.00 | 0.88 | 5.49 | 227.03 | -46.47 | 87.99 | 0.7245 | -402.0 | -329.3 | |
| 1.05 | -7.00 | 0.76 | -7.00 | 7.45 | 226.67 | -46.84 | 85.27 | 0.7280 | -498.2 | 999999 | |
| 1.22 | -7.00 | 0.88 | -7.00 | 7.26 | 226.56 | -46.94 | 85.53 | 0.7294 | -733.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 5.77 | 226.74 | -46.76 | 87.59 | 0.7278 | -367.0 | -264.0 | |
| 2.01 | -7.00 | 1.45 | -7.00 | 6.95 | 226.47 | -47.04 | 85.95 | 0.7305 | -602.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 6.62 | 226.46 | -47.04 | 86.40 | 0.7307 | -461.0 | -377.2 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 5.57 | 226.45 | -47.05 | 87.84 | 0.7314 | 82.0 | 106.0 | |
| 0.00 | 1.14 | 0.00 | 0.83 | 7.35 | 226.10 | -47.40 | 85.40 | 0.7347 | -437.0 | -352.9 | |
| 4.89 | 85.72 | 3.58 | 63.40 | 8.47 | 225.84 | -47.66 | 83.86 | 0.7376 | 826.7 | 499.0 | |
| 3.32 | 6.29 | 2.43 | 4.61 | 7.26 | 225.80 | -47.70 | 85.50 | 0.7383 | -573.7 | -284.1 | |
| 2.88 | 4.46 | 2.12 | 3.27 | 7.79 | 225.63 | -47.87 | 84.78 | 0.7402 | 545.0 | 469.6 | |
| 0.00 | 1.92 | 0.00 | 1.41 | 6.78 | 225.73 | -47.77 | 86.16 | 0.7393 | -379.0 | -265.1 | |
| 2.18 | -17.00 | 1.61 | -17.00 | 8.13 | 225.31 | -48.19 | 84.32 | 0.7439 | 739.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 9.61 | 225.00 | -48.50 | 82.32 | 0.7474 | 659.0 | 581.5 | |
| 1.75 | -17.00 | 1.30 | -17.00 | 8.10 | 224.86 | -48.64 | 84.36 | 0.7491 | 873.5 | 999999 | |
| 1.14 | -17.00 | 0.84 | -17.00 | 7.17 | 224.99 | -48.51 | 85.60 | 0.7477 | -367.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.79 | 9.06 | 224.46 | -49.04 | 83.07 | 0.7536 | 682.0 | 580.8 | |
| 0.00 | 1.84 | 0.00 | 1.38 | 8.33 | 224.40 | -49.10 | 84.04 | 0.7542 | 644.0 | 484.3 | |
| 0.00 | 2.27 | 0.00 | 1.71 | 8.60 | 224.31 | -49.19 | 83.68 | 0.7553 | 738.0 | 535.5 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 6.69 | 224.56 | -48.94 | 86.23 | 0.7529 | 629.0 | 589.4 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 8.02 | 224.27 | -49.23 | 84.45 | 0.7558 | 702.0 | 699.5 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 7.88 | 224.06 | -49.44 | 84.62 | 0.7582 | 367.0 | 463.5 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 7.54 | 222.65 | -50.86 | 85.04 | 0.7740 | 530.0 | 492.0 | |
| 0.00 | 1.40 | 0.00 | 1.09 | 5.54 | 222.83 | -50.67 | 87.64 | 0.7729 | 657.0 | 535.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
