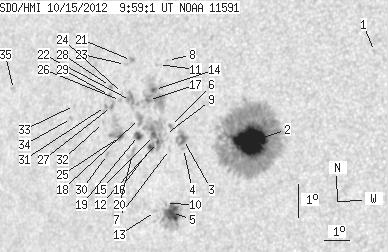

SDO HMI 2012-10-15 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.08 | 591.82 | 64.75 | 387.62 | 7.37 | 228.64 | -41.03 | 85.44 | 0.6551 | -560.5 | -151.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-15 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.84 | 10.38 | 234.68 | -34.99 | 80.18 | 0.5746 | -725.0 | -504.2 | |
| 57.57 | 361.86 | 36.77 | 231.25 | 7.41 | 230.31 | -39.36 | 85.38 | 0.6333 | -1068.4 | -305.8 | |
| 4.72 | 11.97 | 3.13 | 7.96 | 7.30 | 227.65 | -42.02 | 85.53 | 0.6684 | -833.8 | -630.8 | |
| 0.00 | 1.66 | 0.00 | 1.10 | 7.03 | 227.68 | -41.99 | 85.94 | 0.6680 | -813.0 | -653.6 | |
| 16.95 | 39.31 | 11.31 | 26.24 | 5.09 | 227.37 | -42.30 | 88.82 | 0.6728 | -810.6 | -422.3 | |
| 0.00 | 2.10 | 0.00 | 1.40 | 7.65 | 227.07 | -42.60 | 85.00 | 0.6757 | -609.0 | -525.7 | |
| 0.00 | 1.66 | 0.00 | 1.11 | 6.97 | 227.11 | -42.56 | 86.02 | 0.6753 | -448.0 | -403.7 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 9.61 | 226.68 | -42.99 | 82.11 | 0.6811 | -540.0 | -445.5 | |
| 0.00 | 1.66 | 0.00 | 1.12 | 7.40 | 226.90 | -42.77 | 85.37 | 0.6780 | -531.0 | -476.1 | |
| 0.00 | 1.40 | 0.00 | 0.94 | 5.35 | 227.11 | -42.56 | 88.43 | 0.6761 | -377.0 | -290.4 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 9.47 | 226.32 | -43.35 | 82.34 | 0.6855 | -347.0 | -238.9 | |
| 1.40 | 41.76 | 0.94 | 28.26 | 7.14 | 226.60 | -43.07 | 85.75 | 0.6818 | -742.0 | -122.3 | |
| 0.00 | 2.18 | 0.00 | 1.47 | 5.08 | 226.72 | -42.95 | 88.79 | 0.6812 | 146.0 | 149.5 | |
| 2.01 | 48.40 | 1.36 | 32.86 | 8.71 | 226.27 | -43.40 | 83.45 | 0.6860 | 694.1 | 282.2 | |
| 2.71 | -12.00 | 1.83 | -12.00 | 7.34 | 226.41 | -43.26 | 85.46 | 0.6842 | -578.1 | 999999 | |
| 3.49 | -12.00 | 2.37 | -12.00 | 6.98 | 226.37 | -43.30 | 85.99 | 0.6848 | -519.4 | 999999 | |
| 2.10 | -14.00 | 1.43 | -14.00 | 8.37 | 226.07 | -43.60 | 83.95 | 0.6885 | 677.0 | 999999 | |
| 0.00 | 7.78 | 0.00 | 5.32 | 7.80 | 225.77 | -43.90 | 84.77 | 0.6922 | 396.0 | 289.4 | |
| 4.11 | 5.94 | 2.81 | 4.07 | 7.30 | 225.79 | -43.88 | 85.51 | 0.6920 | -567.3 | -381.5 | |
| 0.00 | 5.42 | 0.00 | 3.72 | 6.74 | 225.60 | -44.07 | 86.31 | 0.6945 | -336.0 | -298.7 | |
| 0.00 | 2.71 | 0.00 | 1.87 | 9.51 | 225.18 | -44.49 | 82.32 | 0.6998 | 769.0 | 666.1 | |
| 0.00 | 9.70 | 0.00 | 6.68 | 8.31 | 225.32 | -44.35 | 84.04 | 0.6978 | 746.0 | 739.2 | |
| 0.00 | 1.49 | 0.00 | 1.03 | 9.37 | 224.94 | -44.73 | 82.53 | 0.7026 | 724.0 | 641.6 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 8.50 | 224.95 | -44.72 | 83.77 | 0.7024 | 498.0 | 468.1 | |
| 2.10 | 21.40 | 1.45 | 14.87 | 7.21 | 225.04 | -44.63 | 85.61 | 0.7014 | -470.0 | 318.6 | |
| 0.00 | 1.66 | 0.00 | 1.15 | 8.29 | 224.89 | -44.78 | 84.08 | 0.7031 | 753.0 | 526.7 | |
| 0.52 | 7.34 | 0.37 | 5.14 | 8.08 | 224.54 | -45.13 | 84.37 | 0.7074 | 723.0 | 568.4 | |
| 0.00 | 1.75 | 0.00 | 1.22 | 8.67 | 224.41 | -45.26 | 83.53 | 0.7090 | 694.0 | 606.2 | |
| 0.00 | 1.57 | 0.00 | 1.10 | 8.40 | 224.41 | -45.26 | 83.92 | 0.7091 | 696.0 | 557.6 | |
| 0.00 | 1.92 | 0.00 | 1.34 | 6.64 | 224.55 | -45.12 | 86.41 | 0.7075 | 698.0 | 605.5 | |
| 1.40 | -27.00 | 0.98 | -27.00 | 8.06 | 224.28 | -45.39 | 84.40 | 0.7106 | 596.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 7.58 | 224.26 | -45.41 | 85.08 | 0.7109 | 203.0 | 200.8 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 8.00 | 222.94 | -46.73 | 84.48 | 0.7268 | 493.0 | 412.9 | |
| 0.00 | 1.49 | 0.00 | 1.07 | 7.60 | 222.86 | -46.81 | 85.02 | 0.7277 | 638.0 | 536.3 | |
| 0.00 | 1.92 | 0.00 | 1.46 | 8.27 | 220.12 | -49.55 | 84.08 | 0.7594 | 366.0 | 273.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
