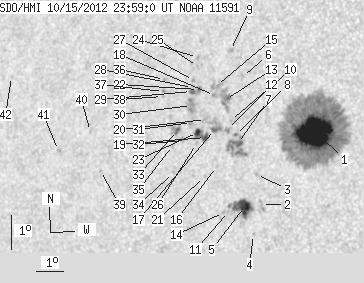

SDO HMI 2012-10-15 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.88 | 545.00 | 53.52 | 321.50 | 7.32 | 228.98 | -32.98 | 85.45 | 0.5435 | -698.3 | -306.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-15 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.85 | 371.05 | 35.39 | 215.87 | 7.44 | 230.19 | -31.77 | 85.21 | 0.5260 | -1494.3 | -410.3 | |
| 0.00 | 3.49 | 0.00 | 2.07 | 5.16 | 228.45 | -33.51 | 89.40 | 0.5520 | 97.0 | 106.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 6.05 | 228.21 | -33.75 | 87.78 | 0.5550 | 635.0 | 497.1 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 4.25 | 228.21 | -33.75 | 91.02 | 0.5563 | 599.0 | 455.6 | |
| 11.26 | 28.81 | 6.73 | 17.23 | 5.07 | 227.84 | -34.12 | 89.52 | 0.5609 | -995.0 | -643.5 | |
| 0.00 | 1.92 | 0.00 | 1.15 | 8.94 | 227.45 | -34.51 | 82.62 | 0.5666 | -656.0 | -437.4 | |
| 3.14 | 22.00 | 1.88 | 13.20 | 6.93 | 227.45 | -34.51 | 86.18 | 0.5658 | -967.3 | -713.2 | |
| 0.87 | 2.53 | 0.52 | 1.52 | 7.20 | 227.36 | -34.60 | 85.71 | 0.5672 | -820.7 | -742.5 | |
| 0.00 | 2.44 | 0.00 | 1.48 | 9.69 | 226.92 | -35.04 | 81.35 | 0.5747 | -519.0 | -426.6 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 7.60 | 227.14 | -34.82 | 84.99 | 0.5704 | -635.0 | -512.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 4.89 | 227.27 | -34.69 | 89.79 | 0.5693 | -395.0 | -342.6 | |
| 0.00 | 3.40 | 0.00 | 2.05 | 7.33 | 227.05 | -34.91 | 85.48 | 0.5715 | -797.0 | -699.2 | |
| 0.00 | 15.19 | 0.00 | 9.17 | 8.22 | 226.90 | -35.06 | 83.92 | 0.5740 | 532.0 | 209.5 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 4.85 | 227.09 | -34.87 | 89.84 | 0.5719 | -548.0 | -446.7 | |
| 0.00 | 6.02 | 0.00 | 3.65 | 8.62 | 226.52 | -35.44 | 83.25 | 0.5795 | 459.0 | 501.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 6.20 | 226.74 | -35.22 | 87.44 | 0.5761 | -544.0 | -418.5 | |
| 2.62 | 12.22 | 1.59 | 7.41 | 7.30 | 226.58 | -35.38 | 85.53 | 0.5783 | -809.7 | -304.3 | |
| 0.00 | 3.06 | 0.00 | 1.85 | 8.32 | 226.48 | -35.48 | 83.78 | 0.5800 | 859.0 | 655.9 | |
| 2.88 | 12.57 | 1.75 | 7.66 | 7.05 | 226.26 | -35.70 | 85.98 | 0.5827 | -745.6 | -626.6 | |
| 0.00 | 2.79 | 0.00 | 1.70 | 7.58 | 226.22 | -35.74 | 85.05 | 0.5834 | 180.0 | 132.0 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 5.88 | 226.32 | -35.64 | 87.99 | 0.5822 | -543.0 | -414.8 | |
| 1.40 | 6.02 | 0.85 | 3.69 | 8.46 | 225.87 | -36.09 | 83.56 | 0.5886 | 890.2 | 831.4 | |
| 3.23 | -19.00 | 1.97 | -19.00 | 7.18 | 225.95 | -36.01 | 85.75 | 0.5871 | -727.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.91 | 9.41 | 225.72 | -36.24 | 81.95 | 0.5912 | 896.0 | 706.1 | |
| 0.00 | 1.92 | 0.00 | 1.18 | 9.15 | 225.75 | -36.21 | 82.40 | 0.5906 | 790.0 | 595.6 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 6.85 | 225.95 | -36.01 | 86.31 | 0.5872 | -471.0 | -354.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | 8.72 | 225.65 | -36.31 | 83.13 | 0.5918 | 799.0 | 642.6 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 8.51 | 225.64 | -36.32 | 83.49 | 0.5919 | 604.0 | 611.0 | |
| 2.01 | -22.00 | 1.23 | -22.00 | 8.39 | 225.61 | -36.35 | 83.70 | 0.5922 | 792.7 | 999999 | |
| 0.00 | 11.44 | 0.00 | 7.01 | 7.97 | 225.65 | -36.31 | 84.41 | 0.5914 | 509.0 | 561.1 | |
| 0.00 | 2.44 | 0.00 | 1.50 | 7.46 | 225.70 | -36.26 | 85.26 | 0.5906 | 272.0 | 48.9 | |
| 0.00 | 1.83 | 0.00 | 1.13 | 6.91 | 225.45 | -36.51 | 86.20 | 0.5941 | -413.0 | -424.3 | |
| 2.62 | 10.65 | 1.61 | 6.58 | 7.19 | 225.20 | -36.76 | 85.72 | 0.5976 | -526.0 | 123.0 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 5.93 | 225.16 | -36.80 | 87.84 | 0.5985 | -570.0 | -412.6 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 6.74 | 225.06 | -36.90 | 86.49 | 0.5997 | -349.0 | -275.1 | |
| 0.00 | 1.57 | 0.00 | 0.98 | 8.69 | 224.56 | -37.40 | 83.25 | 0.6069 | 779.0 | 540.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 8.33 | 224.56 | -37.40 | 83.85 | 0.6067 | 702.0 | 552.1 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 8.17 | 224.54 | -37.42 | 84.10 | 0.6070 | 625.0 | 502.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 5.82 | 222.37 | -39.59 | 87.87 | 0.6367 | 735.0 | 682.1 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 6.96 | 221.87 | -40.09 | 86.07 | 0.6430 | 532.0 | 511.0 | |
| 0.00 | 1.75 | 0.00 | 1.15 | 6.31 | 220.66 | -41.30 | 87.03 | 0.6592 | 633.0 | 535.5 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 8.39 | 218.50 | -43.46 | 83.90 | 0.6867 | 450.0 | 340.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
