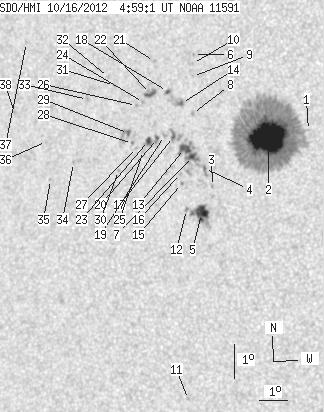

SDO HMI 2012-10-16 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.12 | 536.87 | 60.76 | 306.91 | 7.26 | 229.20 | -30.01 | 85.43 | 0.4997 | -816.6 | -354.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 7.67 | 231.52 | -27.69 | 84.45 | 0.4646 | -234.0 | -180.7 | |
| 67.08 | 389.19 | 37.96 | 220.34 | 7.40 | 230.17 | -29.04 | 85.12 | 0.4852 | -1535.5 | -402.7 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 5.84 | 228.32 | -30.89 | 88.25 | 0.5130 | 671.0 | 534.5 | |
| 1.14 | 41.92 | 0.66 | 24.36 | 6.37 | 228.01 | -31.20 | 87.22 | 0.5176 | 525.2 | -526.7 | |
| 13.01 | 25.59 | 7.53 | 14.80 | 5.02 | 227.98 | -31.23 | 89.83 | 0.5186 | -982.1 | -566.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 9.75 | 227.33 | -31.89 | 80.78 | 0.5295 | -746.0 | -603.5 | |
| 2.62 | -4.00 | 1.52 | -4.00 | 6.70 | 227.56 | -31.65 | 86.57 | 0.5242 | -1072.6 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 7.99 | 227.46 | -31.75 | 84.12 | 0.5260 | -689.0 | -565.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 9.09 | 227.36 | -31.85 | 82.02 | 0.5283 | -716.0 | -567.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 9.48 | 227.32 | -31.89 | 81.29 | 0.5293 | -659.0 | -566.5 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -0.58 | 227.65 | -31.56 | 100.34 | 0.5342 | -612.0 | -480.9 | |
| 0.00 | 1.83 | 0.00 | 1.07 | 5.11 | 227.45 | -31.76 | 89.60 | 0.5264 | -603.0 | -494.9 | |
| 6.90 | -4.00 | 4.02 | -4.00 | 6.93 | 227.26 | -31.95 | 86.14 | 0.5286 | -882.8 | 999999 | |
| 1.31 | 14.41 | 0.77 | 8.44 | 8.26 | 227.05 | -32.17 | 83.62 | 0.5323 | -431.0 | 386.4 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 5.88 | 227.23 | -31.99 | 88.13 | 0.5293 | -695.0 | -625.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 6.17 | 227.17 | -32.04 | 87.57 | 0.5300 | -740.0 | -540.8 | |
| 1.75 | 8.73 | 1.02 | 5.11 | 7.27 | 226.84 | -32.37 | 85.51 | 0.5348 | -715.7 | -653.6 | |
| 1.31 | -14.00 | 0.77 | -14.00 | 8.60 | 226.51 | -32.70 | 83.04 | 0.5403 | 618.9 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.13 | 7.28 | 226.52 | -32.69 | 85.49 | 0.5396 | -781.0 | -586.0 | |
| 1.48 | 3.49 | 0.87 | 2.06 | 7.18 | 226.28 | -32.94 | 85.69 | 0.5431 | -729.6 | -591.0 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 9.47 | 225.95 | -33.26 | 81.50 | 0.5491 | 813.0 | 640.5 | |
| 4.98 | 6.73 | 2.95 | 3.98 | 8.50 | 225.91 | -33.31 | 83.26 | 0.5490 | 912.2 | 786.2 | |
| 2.79 | 5.33 | 1.65 | 3.15 | 7.10 | 225.96 | -33.25 | 85.83 | 0.5477 | -836.0 | -601.9 | |
| 0.00 | 1.40 | 0.00 | 0.83 | 8.22 | 225.68 | -33.53 | 83.79 | 0.5521 | 835.0 | 662.8 | |
| 0.00 | 1.48 | 0.00 | 0.88 | 6.79 | 225.80 | -33.41 | 86.40 | 0.5500 | -438.0 | -300.9 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 8.12 | 225.44 | -33.78 | 83.99 | 0.5556 | 826.0 | 633.8 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 6.87 | 225.54 | -33.67 | 86.26 | 0.5538 | -478.0 | -332.4 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 6.98 | 225.39 | -33.82 | 86.06 | 0.5560 | -464.0 | -478.3 | |
| 1.75 | 9.52 | 1.04 | 5.68 | 7.27 | 225.22 | -33.99 | 85.53 | 0.5585 | -426.1 | 115.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 6.14 | 224.95 | -34.27 | 87.54 | 0.5625 | -599.0 | -456.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 8.67 | 224.58 | -34.64 | 83.06 | 0.5682 | 695.0 | 573.4 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 8.90 | 224.33 | -34.88 | 82.68 | 0.5719 | 436.0 | 323.8 | |
| 0.00 | 1.92 | 0.00 | 1.17 | 8.20 | 223.63 | -35.59 | 83.95 | 0.5815 | 735.0 | 580.2 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 6.29 | 223.28 | -35.94 | 87.23 | 0.5863 | 743.0 | 641.5 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 5.73 | 222.46 | -36.76 | 88.14 | 0.5980 | 782.0 | 662.7 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 6.86 | 222.22 | -37.00 | 86.25 | 0.6010 | 666.0 | 642.5 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 9.76 | 221.13 | -38.08 | 81.50 | 0.6169 | 637.0 | 586.6 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 7.65 | 220.92 | -38.30 | 84.94 | 0.6189 | 631.0 | 449.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
