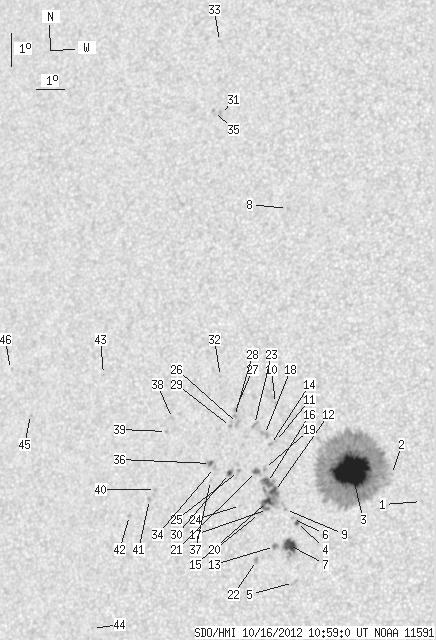

SDO HMI 2012-10-16 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.59 | 523.60 | 59.08 | 290.16 | 7.36 | 229.28 | -26.65 | 85.02 | 0.4486 | -647.6 | -332.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.47 | 6.56 | 232.49 | -23.44 | 86.71 | 0.3976 | -679.0 | -566.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 7.33 | 231.46 | -24.47 | 84.88 | 0.4143 | -187.0 | -190.4 | |
| 69.93 | 395.03 | 38.43 | 217.23 | 7.40 | 230.12 | -25.81 | 84.84 | 0.4353 | -1211.0 | -367.2 | |
| 1.48 | 1.92 | 0.83 | 1.07 | 5.76 | 228.36 | -27.57 | 88.52 | 0.4626 | 449.0 | 216.6 | |
| 0.00 | 2.62 | 0.00 | 1.46 | 3.97 | 228.34 | -27.59 | 92.41 | 0.4644 | 797.0 | 560.1 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 5.88 | 228.22 | -27.71 | 88.27 | 0.4647 | 693.0 | 526.5 | |
| 11.09 | 17.98 | 6.20 | 10.06 | 5.07 | 228.16 | -27.77 | 90.01 | 0.4661 | -964.0 | -674.9 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 15.15 | 227.13 | -28.80 | 69.31 | 0.4991 | -748.0 | -569.0 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 6.13 | 227.97 | -27.96 | 87.71 | 0.4685 | 633.0 | 516.3 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 9.28 | 227.40 | -28.53 | 81.08 | 0.4791 | -718.0 | -550.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.15 | 227.49 | -28.44 | 83.45 | 0.4765 | -737.0 | -562.2 | |
| 5.06 | 40.07 | 2.85 | 22.56 | 6.65 | 227.56 | -28.37 | 86.60 | 0.4747 | -816.3 | -557.7 | |
| 0.61 | 2.97 | 0.34 | 1.67 | 5.01 | 227.65 | -28.28 | 90.08 | 0.4739 | -691.0 | -629.2 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 8.05 | 227.33 | -28.60 | 83.67 | 0.4789 | -729.0 | -614.8 | |
| 3.67 | -12.00 | 2.07 | -12.00 | 6.34 | 227.34 | -28.59 | 87.25 | 0.4781 | -905.3 | 999999 | |
| 5.85 | -12.00 | 3.30 | -12.00 | 6.91 | 227.31 | -28.63 | 86.06 | 0.4787 | -946.2 | 999999 | |
| 1.48 | -12.00 | 0.84 | -12.00 | 6.11 | 227.36 | -28.58 | 87.75 | 0.4779 | -804.4 | 999999 | |
| 0.00 | 4.98 | 0.00 | 2.81 | 8.34 | 227.10 | -28.83 | 83.09 | 0.4826 | 58.0 | -42.1 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 7.32 | 227.18 | -28.76 | 85.20 | 0.4808 | -782.0 | -672.2 | |
| 0.00 | 2.71 | 0.00 | 1.53 | 5.97 | 227.09 | -28.84 | 88.02 | 0.4821 | -640.0 | -516.6 | |
| 3.58 | 4.80 | 2.02 | 2.72 | 7.22 | 226.91 | -29.02 | 85.43 | 0.4849 | -664.1 | -567.9 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 4.57 | 227.06 | -28.88 | 90.94 | 0.4834 | -743.0 | -546.2 | |
| 0.00 | 2.44 | 0.00 | 1.39 | 8.62 | 226.73 | -29.20 | 82.56 | 0.4884 | 530.0 | 424.2 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 6.18 | 226.42 | -29.51 | 87.57 | 0.4922 | -590.0 | -450.3 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 7.19 | 226.29 | -29.65 | 85.51 | 0.4943 | -877.0 | -693.3 | |
| 0.00 | 2.79 | 0.00 | 1.59 | 8.62 | 226.14 | -29.79 | 82.63 | 0.4973 | 846.0 | 660.4 | |
| 0.00 | 1.66 | 0.00 | 0.95 | 9.04 | 226.03 | -29.90 | 81.81 | 0.4994 | 864.0 | 744.8 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 8.83 | 226.02 | -29.91 | 82.23 | 0.4994 | 899.0 | 784.7 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 8.52 | 225.90 | -30.03 | 82.86 | 0.5008 | 815.0 | 662.2 | |
| 1.83 | 3.93 | 1.05 | 2.24 | 7.12 | 225.98 | -29.95 | 85.67 | 0.4989 | -682.3 | -486.2 | |
| 0.00 | 3.14 | 0.00 | 1.86 | 17.89 | 224.24 | -31.69 | 65.79 | 0.5503 | -569.0 | -392.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 10.00 | 225.42 | -30.52 | 80.01 | 0.5098 | 665.0 | 516.9 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 20.11 | 223.73 | -32.21 | 62.29 | 0.5675 | -648.0 | -593.4 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 7.27 | 225.44 | -30.49 | 85.39 | 0.5070 | -676.0 | -544.8 | |
| 0.00 | 1.75 | 0.00 | 1.04 | 17.96 | 223.96 | -31.97 | 65.80 | 0.5543 | -553.0 | -538.0 | |
| 2.01 | 3.23 | 1.15 | 1.86 | 7.38 | 225.30 | -30.64 | 85.17 | 0.5092 | -484.5 | 34.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 6.88 | 225.33 | -30.60 | 86.17 | 0.5085 | -354.0 | -219.9 | |
| 0.00 | 1.66 | 0.00 | 0.97 | 8.66 | 223.84 | -32.09 | 82.81 | 0.5314 | 645.0 | 468.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 8.26 | 223.67 | -32.27 | 83.58 | 0.5338 | 767.0 | 568.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 6.51 | 223.41 | -32.52 | 86.87 | 0.5370 | 785.0 | 653.8 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 6.20 | 223.22 | -32.71 | 87.44 | 0.5399 | 838.0 | 666.1 | |
| 0.00 | 1.22 | 0.00 | 0.72 | 5.68 | 222.54 | -33.40 | 88.36 | 0.5501 | 564.0 | 497.3 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 9.84 | 221.21 | -34.72 | 80.97 | 0.5705 | 619.0 | 493.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 2.24 | 221.35 | -34.58 | 94.36 | 0.5710 | 489.0 | 401.4 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 8.49 | 218.63 | -37.30 | 83.49 | 0.6055 | 444.0 | 387.1 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 9.79 | 217.70 | -38.23 | 81.43 | 0.6190 | 390.0 | 414.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
