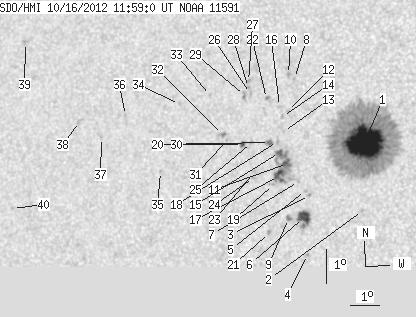

SDO HMI 2012-10-16 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.07 | 518.95 | 62.84 | 286.17 | 7.24 | 229.29 | -26.10 | 85.20 | 0.4397 | -688.2 | -302.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.79 | 401.78 | 44.76 | 219.97 | 7.38 | 230.12 | -25.27 | 84.82 | 0.4269 | -1200.3 | -340.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 5.35 | 230.15 | -25.23 | 89.60 | 0.4262 | 743.0 | 535.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 5.72 | 228.36 | -27.02 | 88.63 | 0.4541 | 516.0 | 534.0 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 3.96 | 228.37 | -27.02 | 92.52 | 0.4555 | 819.0 | 592.1 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 5.87 | 228.22 | -27.16 | 88.31 | 0.4563 | 751.0 | 506.8 | |
| 10.82 | 16.76 | 6.02 | 9.32 | 5.06 | 228.19 | -27.19 | 90.08 | 0.4571 | -965.0 | -668.3 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 6.12 | 227.97 | -27.42 | 87.74 | 0.4601 | 699.0 | 541.1 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 9.19 | 227.62 | -27.76 | 81.12 | 0.4673 | -697.0 | -485.9 | |
| 0.96 | 2.62 | 0.54 | 1.46 | 5.01 | 227.69 | -27.70 | 90.15 | 0.4650 | -731.3 | -641.7 | |
| 0.00 | 1.75 | 0.00 | 0.98 | 9.30 | 227.41 | -27.98 | 80.93 | 0.4708 | -763.0 | -611.5 | |
| 4.71 | 42.86 | 2.64 | 24.00 | 6.64 | 227.57 | -27.82 | 86.60 | 0.4663 | -840.6 | -535.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.20 | 227.46 | -27.92 | 83.28 | 0.4687 | -614.0 | -530.0 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 7.59 | 227.37 | -28.02 | 84.58 | 0.4696 | -606.0 | -511.6 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 8.04 | 227.30 | -28.08 | 83.63 | 0.4710 | -620.0 | -441.6 | |
| 3.58 | -11.00 | 2.01 | -11.00 | 6.96 | 227.27 | -28.11 | 85.93 | 0.4708 | -912.8 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 8.33 | 227.18 | -28.21 | 83.02 | 0.4731 | -460.0 | -299.0 | |
| 7.24 | -11.00 | 4.06 | -11.00 | 6.24 | 227.28 | -28.10 | 87.47 | 0.4706 | -830.6 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.98 | 7.29 | 227.18 | -28.20 | 85.25 | 0.4723 | -763.0 | -607.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 6.00 | 227.13 | -28.26 | 87.99 | 0.4731 | -631.0 | -560.5 | |
| 2.79 | 4.02 | 1.57 | 2.26 | 7.24 | 226.91 | -28.47 | 85.35 | 0.4764 | -626.6 | -464.1 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 4.56 | 227.06 | -28.33 | 91.03 | 0.4750 | -553.0 | -530.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 8.55 | 226.71 | -28.67 | 82.62 | 0.4804 | 672.0 | 561.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 6.35 | 226.45 | -28.93 | 87.22 | 0.4833 | -601.0 | -466.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 6.17 | 226.43 | -28.95 | 87.59 | 0.4837 | -662.0 | -539.4 | |
| 0.00 | 1.57 | 0.00 | 0.89 | 7.21 | 226.30 | -29.09 | 85.44 | 0.4858 | -846.0 | -649.8 | |
| 0.00 | 2.01 | 0.00 | 1.14 | 8.68 | 226.15 | -29.24 | 82.45 | 0.4890 | 890.0 | 648.5 | |
| 0.00 | 2.01 | 0.00 | 1.14 | 9.03 | 226.05 | -29.34 | 81.73 | 0.4909 | 796.0 | 682.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.85 | 226.06 | -29.32 | 82.10 | 0.4905 | 967.0 | 821.2 | |
| 0.00 | 3.67 | 0.00 | 2.08 | 8.61 | 225.95 | -29.44 | 82.61 | 0.4920 | 917.0 | 611.0 | |
| 2.18 | 3.06 | 1.24 | 1.73 | 7.14 | 225.99 | -29.40 | 85.60 | 0.4905 | -639.4 | -549.7 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 7.23 | 225.43 | -29.96 | 85.44 | 0.4990 | -621.0 | -526.1 | |
| 0.00 | 3.32 | 0.00 | 1.90 | 7.41 | 225.28 | -30.11 | 85.10 | 0.5013 | -340.0 | -230.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 8.55 | 224.76 | -30.62 | 82.87 | 0.5097 | 447.0 | 432.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 8.23 | 223.70 | -31.69 | 83.60 | 0.5253 | 692.0 | 542.1 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 6.19 | 223.18 | -32.21 | 87.47 | 0.5325 | 811.0 | 709.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 7.80 | 221.80 | -33.59 | 84.51 | 0.5528 | 643.0 | 524.0 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 7.09 | 220.98 | -34.40 | 85.80 | 0.5644 | 428.0 | 488.2 | |
| 0.00 | 3.06 | 0.00 | 1.85 | 7.53 | 220.14 | -35.25 | 85.05 | 0.5765 | 595.0 | 524.7 | |
| 0.00 | 2.97 | 0.00 | 1.85 | 9.77 | 217.85 | -37.53 | 81.40 | 0.6094 | 630.0 | 458.2 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 4.79 | 217.84 | -37.54 | 89.60 | 0.6095 | 627.0 | 511.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
