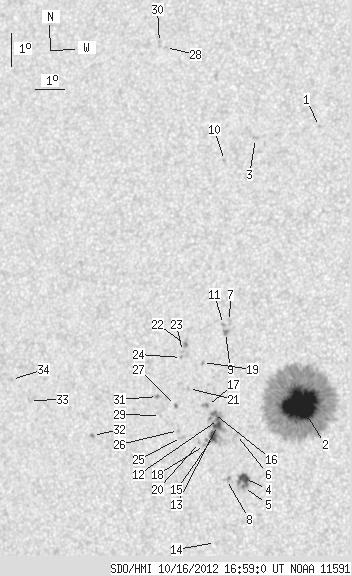

SDO HMI 2012-10-16 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.34 | 505.91 | 49.18 | 272.58 | 7.36 | 229.49 | -23.14 | 84.65 | 0.3934 | -994.5 | -420.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.81 | 15.73 | 230.04 | -22.59 | 63.90 | 0.4135 | -719.0 | -600.2 | |
| 69.43 | 405.87 | 37.21 | 217.60 | 7.37 | 230.11 | -22.52 | 84.55 | 0.3832 | -1536.5 | -427.9 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 15.28 | 227.93 | -24.71 | 66.55 | 0.4414 | -801.0 | -580.8 | |
| 7.24 | 17.36 | 3.93 | 9.43 | 5.09 | 228.38 | -24.25 | 90.32 | 0.4109 | -1027.8 | -700.5 | |
| 0.79 | -4.00 | 0.43 | -4.00 | 4.82 | 228.36 | -24.27 | 90.98 | 0.4115 | -858.2 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.33 | 6.39 | 228.06 | -24.57 | 87.14 | 0.4155 | 650.0 | 522.5 | |
| 0.00 | 2.62 | 0.00 | 1.43 | 9.75 | 227.61 | -25.02 | 79.20 | 0.4262 | -726.0 | -593.5 | |
| 0.00 | 2.70 | 0.00 | 1.47 | 5.03 | 227.79 | -24.84 | 90.39 | 0.4203 | -705.0 | -606.9 | |
| 0.70 | 2.79 | 0.38 | 1.53 | 9.42 | 227.50 | -25.13 | 80.01 | 0.4272 | -799.4 | -656.0 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 14.58 | 226.96 | -25.68 | 68.70 | 0.4520 | -761.0 | -569.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 9.66 | 227.42 | -25.21 | 79.48 | 0.4290 | -759.0 | -647.9 | |
| 1.22 | 36.20 | 0.67 | 19.81 | 6.81 | 227.44 | -25.19 | 86.15 | 0.4254 | -1170.2 | -640.5 | |
| 3.93 | -12.00 | 2.15 | -12.00 | 6.63 | 227.42 | -25.22 | 86.57 | 0.4257 | -976.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 3.14 | 227.49 | -25.15 | 94.80 | 0.4276 | -546.0 | -443.0 | |
| 5.15 | -12.00 | 2.82 | -12.00 | 6.30 | 227.30 | -25.33 | 87.36 | 0.4275 | -1068.2 | 999999 | |
| 0.44 | -12.00 | 0.24 | -12.00 | 6.99 | 227.27 | -25.37 | 85.75 | 0.4282 | -931.6 | 999999 | |
| 0.44 | 2.70 | 0.24 | 1.48 | 7.22 | 227.05 | -25.58 | 85.23 | 0.4317 | -843.0 | -702.1 | |
| 0.00 | 1.74 | 0.00 | 0.96 | 6.02 | 227.02 | -25.62 | 88.01 | 0.4320 | -731.0 | -580.6 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 8.49 | 226.80 | -25.83 | 82.31 | 0.4367 | 714.0 | 514.0 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 6.10 | 226.85 | -25.79 | 87.82 | 0.4347 | -583.0 | -452.8 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 7.70 | 226.39 | -26.25 | 84.18 | 0.4424 | -574.0 | -479.8 | |
| 0.52 | 3.75 | 0.29 | 2.07 | 9.01 | 226.19 | -26.44 | 81.26 | 0.4468 | 991.5 | 751.1 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 8.79 | 226.11 | -26.53 | 81.76 | 0.4479 | 880.0 | 647.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 8.61 | 226.09 | -26.55 | 82.17 | 0.4479 | 669.0 | 613.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | 6.22 | 226.24 | -26.40 | 87.52 | 0.4442 | -656.0 | -511.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 6.43 | 226.13 | -26.51 | 87.06 | 0.4460 | -679.0 | -580.1 | |
| 1.48 | 1.48 | 0.82 | 0.82 | 7.17 | 225.98 | -26.65 | 85.40 | 0.4484 | -688.6 | 0.0 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 17.91 | 224.40 | -28.23 | 63.70 | 0.5041 | -931.0 | -765.6 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 6.85 | 225.49 | -27.14 | 86.14 | 0.4558 | -538.0 | -384.1 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 18.06 | 224.16 | -28.47 | 63.59 | 0.5081 | -665.0 | -499.7 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 7.41 | 225.36 | -27.28 | 84.91 | 0.4582 | -746.0 | -651.4 | |
| 0.00 | 1.66 | 0.00 | 0.94 | 6.15 | 223.21 | -29.42 | 87.63 | 0.4908 | 883.0 | 734.1 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 7.08 | 220.95 | -31.69 | 85.78 | 0.5248 | 735.0 | 554.5 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 7.68 | 220.26 | -32.38 | 84.68 | 0.5351 | 758.0 | 561.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
