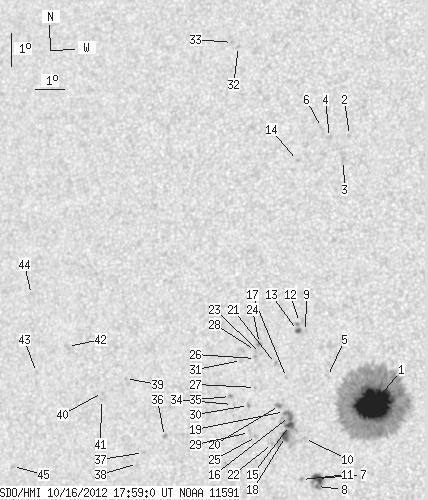

SDO HMI 2012-10-16 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.12 | 519.22 | 52.61 | 279.15 | 7.47 | 229.27 | -22.81 | 84.34 | 0.3882 | -890.3 | -399.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.75 | 405.85 | 39.90 | 216.72 | 7.39 | 230.11 | -21.97 | 84.42 | 0.3744 | -1584.5 | -423.9 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 15.39 | 228.65 | -23.43 | 65.35 | 0.4236 | -835.0 | -614.1 | |
| 0.00 | 3.31 | 0.00 | 1.81 | 14.63 | 228.54 | -23.55 | 67.15 | 0.4213 | -663.0 | -606.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 15.31 | 227.98 | -24.10 | 66.05 | 0.4328 | -753.0 | -578.2 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 8.14 | 228.57 | -23.52 | 82.74 | 0.3999 | -558.0 | -415.8 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 15.60 | 227.67 | -24.41 | 65.65 | 0.4387 | -678.0 | -598.2 | |
| 6.80 | 13.69 | 3.68 | 7.40 | 5.08 | 228.39 | -23.69 | 90.40 | 0.4020 | -1063.2 | -803.1 | |
| 0.52 | -7.00 | 0.28 | -7.00 | 4.84 | 228.36 | -23.72 | 91.00 | 0.4026 | -990.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 9.45 | 227.75 | -24.33 | 79.71 | 0.4149 | -796.0 | -584.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 6.26 | 227.91 | -24.17 | 87.46 | 0.4092 | 779.0 | 542.5 | |
| 0.00 | 2.01 | 0.00 | 1.09 | 5.03 | 227.86 | -24.22 | 90.47 | 0.4104 | -837.0 | -663.0 | |
| 0.00 | 2.97 | 0.00 | 1.62 | 9.71 | 227.53 | -24.55 | 79.15 | 0.4188 | -687.0 | -710.8 | |
| 2.09 | 2.88 | 1.14 | 1.57 | 9.47 | 227.48 | -24.60 | 79.74 | 0.4191 | -747.5 | -710.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 14.57 | 226.98 | -25.10 | 68.35 | 0.4436 | -764.0 | -623.3 | |
| 3.75 | 39.69 | 2.04 | 21.62 | 6.63 | 227.40 | -24.69 | 86.58 | 0.4174 | -904.6 | -609.9 | |
| 1.66 | -15.00 | 0.90 | -15.00 | 6.89 | 227.38 | -24.70 | 85.93 | 0.4177 | -1134.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 8.05 | 227.21 | -24.87 | 83.17 | 0.4211 | -732.0 | -561.1 | |
| 5.67 | -15.00 | 3.09 | -15.00 | 6.29 | 227.28 | -24.80 | 87.38 | 0.4192 | -1118.1 | 999999 | |
| 0.52 | -15.00 | 0.29 | -15.00 | 7.04 | 227.21 | -24.87 | 85.60 | 0.4205 | -827.8 | 999999 | |
| 1.05 | 3.40 | 0.57 | 1.86 | 7.21 | 227.03 | -25.05 | 85.20 | 0.4233 | -864.2 | -710.2 | |
| 0.00 | 1.74 | 0.00 | 0.96 | 8.46 | 226.82 | -25.26 | 82.29 | 0.4278 | 637.0 | 537.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 6.07 | 226.86 | -25.22 | 87.91 | 0.4258 | -643.0 | -520.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 8.73 | 226.30 | -25.78 | 81.75 | 0.4363 | 810.0 | 650.5 | |
| 1.31 | 1.83 | 0.72 | 1.01 | 9.03 | 226.24 | -25.84 | 81.08 | 0.4376 | 966.5 | 895.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 6.25 | 226.32 | -25.76 | 87.47 | 0.4343 | -632.0 | -512.8 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 8.58 | 226.14 | -25.94 | 82.13 | 0.4385 | 351.0 | 376.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 7.71 | 226.20 | -25.88 | 84.11 | 0.4367 | -688.0 | -543.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 8.82 | 226.12 | -25.96 | 81.59 | 0.4391 | 821.0 | 680.4 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 6.36 | 226.08 | -26.00 | 87.22 | 0.4381 | -637.0 | -480.8 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 7.17 | 226.00 | -26.08 | 85.38 | 0.4395 | -812.0 | -655.5 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 8.50 | 225.68 | -26.41 | 82.39 | 0.4456 | 93.0 | 159.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 17.94 | 224.45 | -27.63 | 63.25 | 0.4962 | -888.0 | -731.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 18.05 | 224.22 | -27.87 | 63.20 | 0.4999 | -594.0 | -605.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 7.17 | 225.46 | -26.62 | 85.40 | 0.4479 | -504.0 | -556.0 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 7.41 | 225.38 | -26.70 | 84.87 | 0.4493 | -830.0 | -674.0 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 6.11 | 223.21 | -28.87 | 87.71 | 0.4824 | 922.0 | 736.4 | |
| 0.00 | 1.66 | 0.00 | 0.94 | 5.60 | 222.52 | -29.57 | 88.74 | 0.4932 | 759.0 | 588.1 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 5.26 | 222.33 | -29.76 | 89.41 | 0.4962 | 540.0 | 474.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 7.78 | 221.75 | -30.34 | 84.36 | 0.5049 | 622.0 | 496.0 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 7.32 | 220.97 | -31.11 | 85.30 | 0.5162 | 738.0 | 547.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 7.11 | 220.96 | -31.13 | 85.71 | 0.5165 | 732.0 | 675.6 | |
| 0.00 | 2.88 | 0.00 | 1.69 | 8.63 | 219.62 | -32.46 | 82.89 | 0.5369 | 702.0 | 620.8 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 7.80 | 218.58 | -33.50 | 84.50 | 0.5516 | 670.0 | 454.0 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 10.11 | 218.16 | -33.93 | 80.36 | 0.5595 | 362.0 | 355.1 | |
| 0.00 | 1.83 | 0.00 | 1.09 | 4.95 | 217.92 | -34.16 | 89.63 | 0.5617 | 654.0 | 507.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
