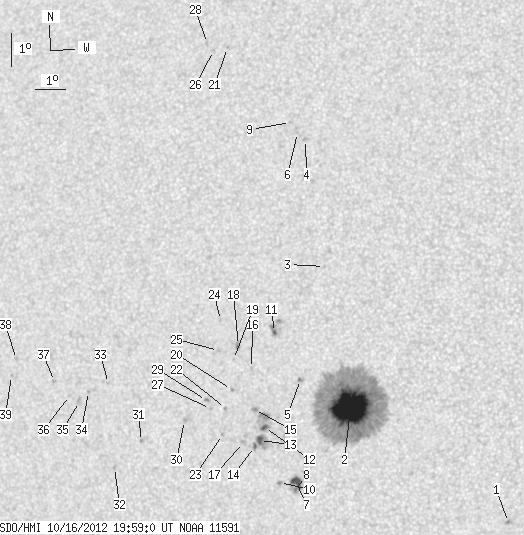

SDO HMI 2012-10-16 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.94 | 523.62 | 47.81 | 279.23 | 7.43 | 229.33 | -21.65 | 84.32 | 0.3696 | -918.5 | -421.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-10-16 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.35 | 4.08 | 235.21 | -15.76 | 95.24 | 0.2733 | -918.0 | -701.6 | |
| 71.09 | 412.13 | 37.67 | 218.44 | 7.37 | 230.11 | -20.87 | 84.31 | 0.3566 | -1646.0 | -442.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.55 | 228.99 | -21.98 | 73.49 | 0.3842 | -645.0 | -480.5 | |
| 0.00 | 2.53 | 0.00 | 1.38 | 15.35 | 227.99 | -22.99 | 65.09 | 0.4170 | -664.0 | -662.4 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 8.14 | 228.44 | -22.53 | 82.52 | 0.3843 | -727.0 | -610.4 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 15.55 | 227.70 | -23.28 | 64.88 | 0.4224 | -847.0 | -682.1 | |
| 7.68 | 13.69 | 4.11 | 7.34 | 5.07 | 228.46 | -22.52 | 90.58 | 0.3832 | -1050.2 | -763.1 | |
| 0.70 | -7.00 | 0.37 | -7.00 | 4.86 | 228.43 | -22.54 | 91.13 | 0.3838 | -958.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 15.85 | 227.42 | -23.55 | 64.45 | 0.4279 | -671.0 | -610.3 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 5.05 | 227.91 | -23.07 | 90.57 | 0.3921 | -839.0 | -704.4 | |
| 1.74 | 11.34 | 0.94 | 6.13 | 9.52 | 227.50 | -23.48 | 79.29 | 0.4016 | -833.0 | -682.9 | |
| 2.97 | 18.06 | 1.60 | 9.76 | 6.67 | 227.35 | -23.63 | 86.43 | 0.4006 | -969.7 | -812.6 | |
| 3.75 | 17.10 | 2.03 | 9.24 | 6.27 | 227.20 | -23.78 | 87.42 | 0.4029 | -1123.2 | -596.0 | |
| 2.01 | -13.00 | 1.09 | -13.00 | 6.09 | 227.04 | -23.93 | 87.88 | 0.4054 | -741.4 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.51 | 7.19 | 226.99 | -23.99 | 85.15 | 0.4065 | -850.0 | -718.6 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 8.41 | 226.82 | -24.16 | 82.18 | 0.4104 | 772.0 | 560.4 | |
| 0.00 | 3.14 | 0.00 | 1.70 | 6.19 | 226.68 | -24.30 | 87.62 | 0.4112 | -641.0 | -484.7 | |
| 0.00 | 2.44 | 0.00 | 1.33 | 9.08 | 226.34 | -24.64 | 80.68 | 0.4190 | 957.0 | 847.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 8.66 | 226.20 | -24.78 | 81.72 | 0.4204 | 884.0 | 632.5 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 7.76 | 226.19 | -24.78 | 83.87 | 0.4195 | -738.0 | -614.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 18.04 | 224.95 | -26.03 | 61.88 | 0.4750 | -822.0 | -549.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 7.18 | 226.03 | -24.95 | 85.25 | 0.4217 | -707.0 | -715.6 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 6.40 | 225.97 | -25.01 | 87.11 | 0.4224 | -725.0 | -575.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 9.80 | 225.68 | -25.30 | 79.16 | 0.4305 | 533.0 | 432.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 8.91 | 225.68 | -25.29 | 81.25 | 0.4289 | 794.0 | 701.5 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 17.93 | 224.47 | -26.50 | 62.46 | 0.4808 | -861.0 | -688.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 7.16 | 225.53 | -25.45 | 85.34 | 0.4295 | -759.0 | -499.0 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 18.13 | 224.23 | -26.75 | 62.25 | 0.4853 | -712.0 | -625.1 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 7.40 | 225.38 | -25.59 | 84.81 | 0.4320 | -759.0 | -613.4 | |
| 0.00 | 2.01 | 0.00 | 1.11 | 6.77 | 224.68 | -26.29 | 86.29 | 0.4427 | 872.0 | 766.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 6.08 | 223.27 | -27.71 | 87.82 | 0.4646 | 965.0 | 807.3 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 5.26 | 222.39 | -28.59 | 89.51 | 0.4784 | 838.0 | 620.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 7.76 | 222.03 | -28.94 | 84.30 | 0.4839 | 704.0 | 616.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 7.49 | 221.36 | -29.62 | 84.90 | 0.4939 | 756.0 | 616.1 | |
| 0.00 | 4.01 | 0.00 | 2.29 | 7.17 | 221.07 | -29.91 | 85.55 | 0.4982 | 742.0 | 661.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 7.34 | 220.71 | -30.27 | 85.24 | 0.5037 | 696.0 | 543.0 | |
| 0.00 | 1.83 | 0.00 | 1.06 | 7.73 | 220.16 | -30.82 | 84.49 | 0.5121 | 793.0 | 578.2 | |
| 0.00 | 1.57 | 0.00 | 0.92 | 8.32 | 218.76 | -32.22 | 83.46 | 0.5331 | 721.0 | 498.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 7.83 | 218.62 | -32.35 | 84.39 | 0.5348 | 687.0 | 563.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
