SDO HMI 2012-10-17 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.89 | 514.93 | 47.99 | 269.35 | 7.32 | 229.53 | -18.68 | 83.98 | 0.3210 | -1012.6 | -430.1 | |
|
previous
or next observation for the same group /

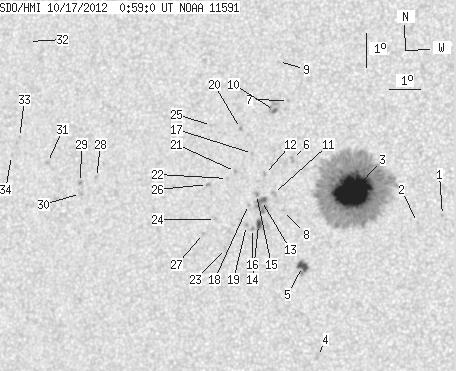

back to the solar disc SDO HMI 2012-10-17 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.36 | 6.71 | 232.95 | -15.27 | 85.40 | 0.2636 | -803.0 | -660.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 6.48 | 232.17 | -16.05 | 86.37 | 0.2764 | -769.0 | -524.8 | |
| 75.48 | 431.01 | 39.33 | 224.61 | 7.35 | 230.10 | -18.12 | 83.78 | 0.3117 | -1603.4 | -430.4 | |
| 0.00 | 3.05 | 0.00 | 1.60 | 2.39 | 229.12 | -19.10 | 99.10 | 0.3325 | -769.0 | -599.1 | |
| 6.46 | 10.12 | 3.39 | 5.32 | 5.07 | 228.59 | -19.63 | 90.93 | 0.3362 | -1055.1 | -848.2 | |
| 0.00 | 2.71 | 0.00 | 1.43 | 8.25 | 228.14 | -20.08 | 81.57 | 0.3450 | -894.0 | -633.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 10.01 | 227.91 | -20.31 | 76.66 | 0.3529 | -822.0 | -627.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 6.72 | 227.92 | -20.30 | 86.06 | 0.3469 | 629.0 | 460.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 11.17 | 227.50 | -20.72 | 73.71 | 0.3631 | -640.0 | -483.6 | |
| 1.66 | 11.34 | 0.88 | 6.02 | 9.69 | 227.47 | -20.75 | 77.74 | 0.3589 | -916.8 | -668.8 | |
| 0.00 | 2.79 | 0.00 | 1.48 | 7.21 | 227.58 | -20.64 | 84.67 | 0.3528 | -855.0 | -674.3 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 7.77 | 227.26 | -20.96 | 83.16 | 0.3585 | -741.0 | -578.6 | |
| 4.36 | 15.53 | 2.31 | 8.24 | 6.99 | 227.20 | -21.02 | 85.35 | 0.3587 | -998.7 | -832.4 | |
| 3.93 | 6.72 | 2.08 | 3.56 | 6.27 | 227.14 | -21.08 | 87.36 | 0.3595 | -1062.6 | -597.7 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 7.17 | 227.03 | -21.19 | 84.88 | 0.3616 | -825.0 | -687.1 | |
| 0.00 | 2.01 | 0.00 | 1.07 | 6.15 | 226.95 | -21.27 | 87.72 | 0.3626 | -919.0 | -702.0 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 8.39 | 226.84 | -21.38 | 81.56 | 0.3662 | 652.0 | 532.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 6.86 | 226.79 | -21.43 | 85.76 | 0.3654 | -686.0 | -569.6 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 6.23 | 226.75 | -21.47 | 87.49 | 0.3658 | -795.0 | -612.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 9.12 | 226.41 | -21.81 | 79.72 | 0.3745 | 1055.0 | 830.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 7.83 | 226.32 | -21.90 | 83.19 | 0.3738 | -879.0 | -699.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 7.61 | 226.07 | -22.15 | 83.82 | 0.3775 | -763.0 | -587.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 5.52 | 226.10 | -22.12 | 89.39 | 0.3764 | -466.0 | -422.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 6.37 | 225.74 | -22.48 | 87.12 | 0.3821 | -739.0 | -512.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 9.17 | 225.45 | -22.77 | 79.89 | 0.3897 | 667.0 | 520.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 7.41 | 225.43 | -22.79 | 84.45 | 0.3876 | -827.0 | -617.6 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 5.94 | 225.37 | -22.85 | 88.25 | 0.3881 | -692.0 | -525.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 7.47 | 221.74 | -26.48 | 84.69 | 0.4458 | 620.0 | 551.8 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 7.30 | 221.21 | -27.01 | 85.12 | 0.4540 | 893.0 | 764.8 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 6.97 | 221.23 | -26.99 | 85.84 | 0.4535 | 726.0 | 590.1 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 7.84 | 220.05 | -28.17 | 84.03 | 0.4721 | 788.0 | 685.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 11.43 | 219.07 | -29.15 | 76.79 | 0.4925 | 649.0 | 511.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.55 | 219.03 | -29.19 | 82.67 | 0.4882 | 639.0 | 468.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 8.00 | 218.80 | -29.42 | 83.83 | 0.4913 | 571.0 | 409.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
