SDO HMI 2012-10-17 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.84 | 496.17 | 42.72 | 256.37 | 7.29 | 229.59 | -16.43 | 83.40 | 0.2838 | -1028.8 | -444.5 | |
|
previous
or next observation for the same group /

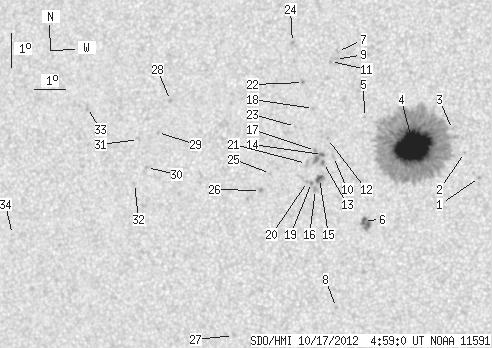

back to the solar disc SDO HMI 2012-10-17 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | 6.48 | 232.19 | -13.84 | 85.95 | 0.2393 | -970.0 | -752.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 7.22 | 231.70 | -14.32 | 83.06 | 0.2484 | 613.0 | 352.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 7.90 | 231.30 | -14.72 | 80.55 | 0.2563 | -671.0 | -485.1 | |
| 74.29 | 428.86 | 38.26 | 220.95 | 7.36 | 230.10 | -15.92 | 83.07 | 0.2753 | -1663.9 | -456.1 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 8.19 | 228.53 | -17.50 | 80.80 | 0.3028 | -689.0 | -492.7 | |
| 2.44 | 8.99 | 1.27 | 4.66 | 5.11 | 228.61 | -17.42 | 91.06 | 0.2996 | -929.9 | -1024.7 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 10.13 | 227.57 | -18.46 | 75.15 | 0.3238 | -712.0 | -566.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 2.48 | 227.81 | -18.22 | 99.25 | 0.3178 | -871.0 | -670.5 | |
| 0.00 | 4.02 | 0.00 | 2.10 | 9.89 | 227.52 | -18.51 | 75.91 | 0.3238 | -691.0 | -577.4 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 6.99 | 227.60 | -18.43 | 84.92 | 0.3164 | -706.0 | -517.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.83 | 227.36 | -18.66 | 76.20 | 0.3261 | -753.0 | -627.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 7.52 | 227.38 | -18.64 | 83.29 | 0.3205 | -933.0 | -762.9 | |
| 1.31 | 8.38 | 0.68 | 4.38 | 6.80 | 227.29 | -18.74 | 85.56 | 0.3214 | -1009.6 | -892.6 | |
| 1.57 | -13.00 | 0.82 | -13.00 | 7.04 | 227.24 | -18.78 | 84.82 | 0.3222 | -1039.1 | 999999 | |
| 3.23 | 6.02 | 1.69 | 3.15 | 6.32 | 227.18 | -18.85 | 87.07 | 0.3229 | -1093.2 | -733.6 | |
| 0.00 | 2.53 | 0.00 | 1.33 | 5.99 | 227.06 | -18.96 | 88.10 | 0.3248 | -834.0 | -737.4 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 7.15 | 227.02 | -19.01 | 84.52 | 0.3261 | -817.0 | -646.3 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 8.41 | 226.89 | -19.13 | 80.73 | 0.3299 | 523.0 | 401.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 6.20 | 226.93 | -19.10 | 87.47 | 0.3270 | -966.0 | -846.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 6.22 | 226.80 | -19.23 | 87.40 | 0.3291 | -807.0 | -687.5 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 6.76 | 226.75 | -19.28 | 85.77 | 0.3302 | -707.0 | -638.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.17 | 226.53 | -19.49 | 78.59 | 0.3375 | 1020.0 | 895.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 7.85 | 226.35 | -19.68 | 82.56 | 0.3379 | -586.0 | -473.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 10.36 | 226.11 | -19.92 | 75.39 | 0.3478 | 832.0 | 681.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 6.42 | 225.61 | -20.42 | 86.85 | 0.3487 | -685.0 | -542.8 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 5.90 | 225.31 | -20.72 | 88.34 | 0.3536 | -758.0 | -621.4 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 1.54 | 224.54 | -21.48 | 100.13 | 0.3735 | -826.0 | -588.3 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 8.49 | 222.25 | -23.78 | 81.84 | 0.4046 | 747.0 | 636.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 7.51 | 221.88 | -24.15 | 84.29 | 0.4094 | 856.0 | 601.1 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 6.45 | 221.57 | -24.45 | 86.90 | 0.4137 | 799.0 | 670.9 | |
| 0.00 | 2.18 | 0.00 | 1.19 | 7.28 | 221.26 | -24.76 | 84.93 | 0.4189 | 892.0 | 646.2 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 5.96 | 221.20 | -24.83 | 88.09 | 0.4196 | 519.0 | 469.8 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 8.16 | 219.50 | -26.53 | 83.09 | 0.4472 | 902.0 | 725.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 4.26 | 217.16 | -28.86 | 91.50 | 0.4835 | 720.0 | 550.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
