SDO HMI 2012-10-17 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.65 | 502.01 | 40.45 | 258.77 | 7.28 | 229.56 | -15.92 | 83.28 | 0.2751 | -999.9 | -427.9 | |
|
previous
or next observation for the same group /

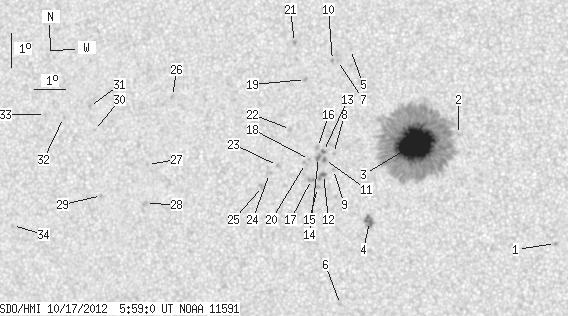

back to the solar disc SDO HMI 2012-10-17 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 0.93 | 4.47 | 234.48 | -11.00 | 95.76 | 0.1921 | -833.0 | -605.0 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 7.67 | 231.42 | -14.06 | 81.10 | 0.2448 | -571.0 | -251.2 | |
| 72.71 | 438.20 | 37.35 | 225.16 | 7.37 | 230.09 | -15.39 | 82.85 | 0.2664 | -1655.6 | -446.6 | |
| 0.00 | 8.64 | 0.00 | 4.47 | 5.00 | 228.72 | -16.76 | 91.52 | 0.2886 | -1271.0 | -961.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.12 | 227.92 | -17.56 | 74.55 | 0.3095 | -751.0 | -568.7 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 2.50 | 227.86 | -17.62 | 99.55 | 0.3080 | -769.0 | -567.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 9.78 | 227.52 | -17.95 | 75.89 | 0.3146 | -779.0 | -557.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 7.00 | 227.52 | -17.95 | 84.79 | 0.3086 | -893.0 | -722.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 6.52 | 227.54 | -17.93 | 86.35 | 0.3079 | 559.0 | 361.8 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 9.78 | 227.36 | -18.11 | 76.01 | 0.3172 | -811.0 | -619.4 | |
| 1.05 | 6.46 | 0.55 | 3.37 | 6.81 | 227.25 | -18.23 | 85.44 | 0.3130 | -990.4 | -847.4 | |
| 1.75 | 4.10 | 0.91 | 2.14 | 6.36 | 227.23 | -18.25 | 86.89 | 0.3130 | -1071.7 | -1030.6 | |
| 1.31 | -11.00 | 0.68 | -11.00 | 7.05 | 227.21 | -18.27 | 84.69 | 0.3139 | -960.4 | 999999 | |
| 1.83 | -11.00 | 0.96 | -11.00 | 6.87 | 227.05 | -18.42 | 85.30 | 0.3162 | -872.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 5.97 | 227.06 | -18.42 | 88.15 | 0.3159 | -835.0 | -681.7 | |
| 0.00 | 1.92 | 0.00 | 1.00 | 7.16 | 227.01 | -18.47 | 84.36 | 0.3172 | -787.0 | -565.5 | |
| 0.00 | 2.79 | 0.00 | 1.46 | 6.20 | 226.86 | -18.62 | 87.41 | 0.3192 | -896.0 | -816.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 6.80 | 226.77 | -18.71 | 85.55 | 0.3208 | -774.0 | -586.3 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 9.18 | 226.53 | -18.94 | 78.28 | 0.3288 | 1033.0 | 781.8 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 6.68 | 226.65 | -18.83 | 85.95 | 0.3228 | -766.0 | -617.6 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 10.28 | 226.12 | -19.36 | 75.27 | 0.3388 | 945.0 | 741.8 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 7.68 | 226.13 | -19.35 | 82.98 | 0.3323 | -835.0 | -560.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 6.59 | 225.76 | -19.72 | 86.30 | 0.3373 | -680.0 | -569.5 | |
| 0.00 | 2.88 | 0.00 | 1.52 | 6.34 | 225.51 | -19.96 | 87.05 | 0.3413 | -701.0 | -559.0 | |
| 0.00 | 2.97 | 0.00 | 1.57 | 5.94 | 225.31 | -20.17 | 88.21 | 0.3447 | -633.0 | -563.2 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 8.53 | 222.26 | -23.22 | 81.58 | 0.3958 | 722.0 | 589.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 6.47 | 221.55 | -23.93 | 86.84 | 0.4053 | 722.0 | 566.1 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 5.30 | 221.54 | -23.94 | 89.73 | 0.4058 | 736.0 | 654.7 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 5.48 | 220.08 | -25.40 | 89.18 | 0.4289 | 624.0 | 496.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 7.41 | 219.74 | -25.74 | 84.69 | 0.4343 | 723.0 | 523.6 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 8.12 | 219.53 | -25.95 | 83.08 | 0.4382 | 938.0 | 735.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 7.76 | 218.67 | -26.80 | 84.02 | 0.4511 | 634.0 | 494.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 7.82 | 218.06 | -27.42 | 83.94 | 0.4607 | 685.0 | 476.5 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 4.46 | 217.12 | -28.35 | 91.14 | 0.4755 | 667.0 | 546.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
