SDO HMI 2012-10-17 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.67 | 492.37 | 43.42 | 253.21 | 7.28 | 229.52 | -15.41 | 83.08 | 0.2666 | -960.7 | -399.8 | |
|
previous
or next observation for the same group /

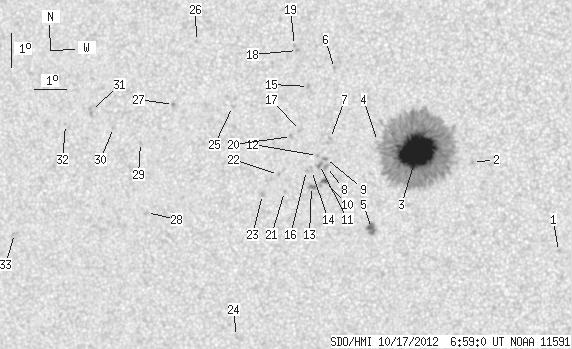

back to the solar disc SDO HMI 2012-10-17 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.79 | 4.44 | 234.51 | -10.42 | 96.26 | 0.1823 | -625.0 | -595.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 7.05 | 231.82 | -13.11 | 83.25 | 0.2277 | 787.0 | 549.0 | |
| 78.73 | 430.42 | 40.35 | 220.61 | 7.34 | 230.10 | -14.83 | 82.72 | 0.2570 | -1595.7 | -435.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 7.61 | 228.84 | -16.09 | 82.19 | 0.2785 | 22.0 | 31.2 | |
| 3.58 | 7.68 | 1.85 | 3.96 | 5.01 | 228.74 | -16.19 | 91.58 | 0.2792 | -1091.7 | -896.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 9.75 | 227.39 | -17.54 | 75.69 | 0.3079 | -767.0 | -660.6 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 7.66 | 227.36 | -17.57 | 82.52 | 0.3031 | -872.0 | -639.2 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 6.82 | 227.27 | -17.66 | 85.32 | 0.3036 | -1123.0 | -834.8 | |
| 0.00 | 1.83 | 0.00 | 0.95 | 7.06 | 227.23 | -17.70 | 84.54 | 0.3045 | -1140.0 | -962.5 | |
| 2.36 | 4.54 | 1.22 | 2.36 | 6.37 | 227.22 | -17.71 | 86.81 | 0.3041 | -1055.6 | -919.6 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 6.87 | 227.04 | -17.89 | 85.18 | 0.3074 | -993.0 | -897.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 7.14 | 226.97 | -17.96 | 84.32 | 0.3088 | -787.0 | -607.1 | |
| 0.00 | 3.23 | 0.00 | 1.68 | 6.21 | 226.82 | -18.11 | 87.36 | 0.3108 | -922.0 | -788.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 6.69 | 226.80 | -18.13 | 85.82 | 0.3113 | -770.0 | -562.9 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 9.19 | 226.59 | -18.34 | 77.93 | 0.3190 | 1013.0 | 815.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 6.68 | 226.64 | -18.29 | 85.85 | 0.3139 | -876.0 | -701.6 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 7.87 | 226.40 | -18.53 | 82.14 | 0.3192 | -648.0 | -420.3 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 10.26 | 226.18 | -18.75 | 74.93 | 0.3290 | 941.0 | 767.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 10.41 | 226.07 | -18.86 | 74.56 | 0.3312 | 764.0 | 554.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 7.68 | 226.12 | -18.81 | 82.80 | 0.3235 | -797.0 | -596.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 6.03 | 225.97 | -18.96 | 87.93 | 0.3248 | -731.0 | -522.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 6.53 | 225.76 | -19.17 | 86.40 | 0.3284 | -719.0 | -544.1 | |
| 0.00 | 2.71 | 0.00 | 1.42 | 5.92 | 225.27 | -19.66 | 88.27 | 0.3363 | -707.0 | -530.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 1.65 | 224.54 | -20.39 | 100.40 | 0.3557 | -631.0 | -600.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 8.52 | 224.19 | -20.74 | 80.91 | 0.3563 | 739.0 | 569.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 10.42 | 222.89 | -22.04 | 76.30 | 0.3814 | 747.0 | 552.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 8.51 | 222.27 | -22.66 | 81.48 | 0.3870 | 799.0 | 637.7 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 5.25 | 221.55 | -23.38 | 89.88 | 0.3969 | 730.0 | 606.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 7.34 | 221.25 | -23.68 | 84.65 | 0.4017 | 686.0 | 632.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 7.75 | 220.34 | -24.59 | 83.75 | 0.4166 | 832.0 | 639.2 | |
| 0.00 | 4.71 | 0.00 | 2.58 | 8.23 | 219.57 | -25.36 | 82.74 | 0.4291 | 680.0 | 650.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 7.77 | 218.73 | -26.20 | 83.90 | 0.4418 | 727.0 | 555.6 | |
| 0.00 | 2.01 | 0.00 | 1.12 | 4.44 | 217.19 | -27.74 | 91.24 | 0.4661 | 803.0 | 620.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
