SDO HMI 2013-01-06 16:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.94 | 295.35 | 24.32 | 156.46 | -24.26 | 250.49 | -1.41 | 176.36 | 0.3546 | 863.9 | 343.8 | |
|
previous
or next observation for the same group /

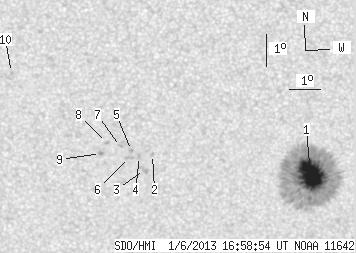

back to the solar disc SDO HMI 2013-01-06 16:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.94 | 278.54 | 24.32 | 147.53 | -24.30 | 250.84 | -1.06 | 177.26 | 0.3542 | 1506.0 | 422.4 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -23.64 | 245.75 | -6.15 | 163.99 | 0.3572 | -785.0 | -542.8 | |
| 0.00 | 3.65 | 0.00 | 1.94 | -24.11 | 245.47 | -6.43 | 163.70 | 0.3658 | -622.0 | -696.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -23.70 | 245.33 | -6.57 | 163.01 | 0.3601 | -974.0 | -813.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -23.51 | 245.08 | -6.82 | 162.23 | 0.3584 | -1017.0 | -817.6 | |
| 0.00 | 2.97 | 0.00 | 1.58 | -23.73 | 244.97 | -6.93 | 162.17 | 0.3623 | -984.0 | -803.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -23.39 | 244.73 | -7.17 | 161.27 | 0.3582 | -977.0 | -822.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -23.26 | 244.28 | -7.61 | 160.07 | 0.3587 | -805.0 | -717.3 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -23.60 | 244.07 | -7.83 | 159.91 | 0.3651 | -907.0 | -761.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -21.05 | 241.37 | -10.53 | 150.35 | 0.3463 | -772.0 | -679.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
