SDO HMI 2013-01-06 17:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.46 | 309.77 | 22.47 | 164.09 | -24.30 | 250.51 | -0.83 | 177.87 | 0.3546 | 930.6 | 350.7 | |
|
previous
or next observation for the same group /

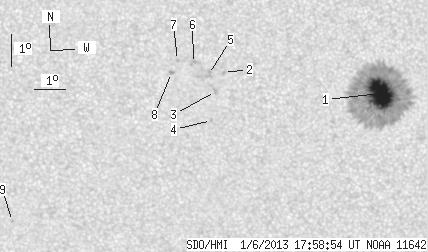

back to the solar disc SDO HMI 2013-01-06 17:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.46 | 293.89 | 22.47 | 155.63 | -24.31 | 250.83 | -0.51 | 178.68 | 0.3539 | 1531.9 | 418.3 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -23.62 | 245.78 | -5.57 | 165.41 | 0.3543 | -590.0 | -534.1 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -24.22 | 245.49 | -5.85 | 165.17 | 0.3649 | -772.0 | -658.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -25.13 | 245.32 | -6.03 | 165.44 | 0.3799 | -692.0 | -563.6 | |
| 0.00 | 3.82 | 0.00 | 2.03 | -23.68 | 245.29 | -6.05 | 164.25 | 0.3574 | -645.0 | -766.4 | |
| 0.00 | 3.06 | 0.00 | 1.62 | -23.33 | 244.82 | -6.52 | 162.79 | 0.3541 | -808.0 | -812.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -23.24 | 244.31 | -7.03 | 161.45 | 0.3551 | -837.0 | -709.0 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -23.61 | 244.10 | -7.25 | 161.29 | 0.3620 | -942.0 | -790.6 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -28.29 | 238.38 | -12.96 | 154.71 | 0.4642 | -781.0 | -637.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
