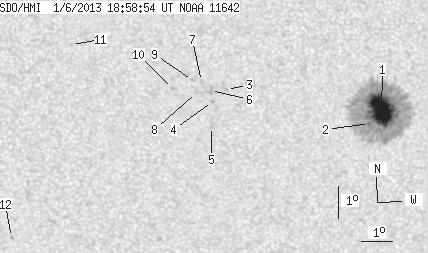

SDO HMI 2013-01-06 18:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.32 | 295.99 | 25.57 | 156.80 | -24.34 | 250.49 | -0.30 | 179.26 | 0.3551 | 835.1 | 345.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-06 18:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.13 | 281.06 | 24.94 | 148.83 | -24.34 | 250.83 | 0.04 | 180.11 | 0.3543 | 1505.4 | 415.8 | |
| 1.19 | -1.00 | 0.63 | -1.00 | -24.75 | 250.44 | -0.35 | 179.12 | 0.3611 | 761.1 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -23.66 | 245.84 | -4.95 | 166.99 | 0.3524 | -749.0 | -603.1 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -24.03 | 245.37 | -5.42 | 166.09 | 0.3601 | -830.0 | -706.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -24.82 | 245.31 | -5.49 | 166.48 | 0.3728 | -727.0 | -567.0 | |
| 0.00 | 4.25 | 0.00 | 2.25 | -23.69 | 245.32 | -5.47 | 165.70 | 0.3549 | -837.0 | -805.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -23.40 | 245.05 | -5.75 | 164.78 | 0.3516 | -958.0 | -804.9 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -23.75 | 244.87 | -5.92 | 164.62 | 0.3577 | -820.0 | -726.8 | |
| 0.00 | 1.87 | 0.00 | 0.99 | -23.37 | 244.76 | -6.03 | 164.03 | 0.3523 | -926.0 | -772.7 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -23.62 | 244.10 | -6.69 | 162.63 | 0.3592 | -928.0 | -812.7 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -22.21 | 240.92 | -9.87 | 153.52 | 0.3575 | -791.0 | -702.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -28.30 | 238.35 | -12.44 | 155.59 | 0.4609 | -754.0 | -646.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
