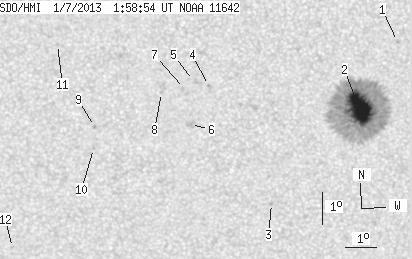

SDO HMI 2013-01-07 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.79 | 295.43 | 24.28 | 156.77 | -24.38 | 250.43 | 3.49 | 188.96 | 0.3594 | 786.1 | 364.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-07 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | -22.26 | 251.86 | 4.92 | 194.02 | 0.3292 | -648.0 | -593.6 | |
| 45.79 | 281.95 | 24.28 | 149.59 | -24.36 | 250.70 | 3.76 | 189.63 | 0.3591 | 1422.4 | 418.1 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -27.39 | 247.87 | 0.94 | 182.07 | 0.4033 | 737.0 | 638.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -23.64 | 245.82 | -1.12 | 177.00 | 0.3425 | -839.0 | -693.0 | |
| 0.00 | 0.42 | 0.00 | 0.22 | -23.48 | 245.34 | -1.60 | 175.68 | 0.3404 | -316.0 | -474.6 | |
| 0.00 | 4.67 | 0.00 | 2.48 | -24.87 | 245.22 | -1.71 | 175.70 | 0.3632 | -843.0 | -698.3 | |
| 0.00 | 0.59 | 0.00 | 0.31 | -23.73 | 245.05 | -1.89 | 174.96 | 0.3449 | -825.0 | -675.7 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -23.86 | 244.30 | -2.63 | 173.04 | 0.3482 | -804.0 | -677.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -24.92 | 242.10 | -4.84 | 168.05 | 0.3712 | -927.0 | -841.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -25.61 | 242.04 | -4.90 | 168.33 | 0.3824 | -829.0 | -707.9 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -22.34 | 241.01 | -5.92 | 163.35 | 0.3348 | -748.0 | -533.8 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -28.77 | 239.15 | -7.79 | 164.34 | 0.4420 | -762.0 | -630.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
