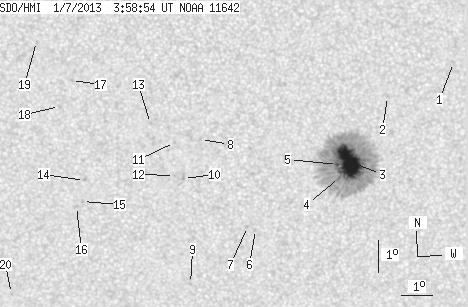

SDO HMI 2013-01-07 03:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.11 | 308.22 | 23.96 | 163.74 | -24.37 | 250.31 | 4.47 | 191.38 | 0.3620 | 587.9 | 349.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-07 03:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.80 | -21.23 | 253.92 | 8.07 | 203.50 | 0.3298 | -752.0 | -561.4 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -22.30 | 251.86 | 6.01 | 196.93 | 0.3344 | -778.0 | -489.3 | |
| 43.16 | 290.24 | 22.92 | 154.18 | -24.34 | 250.68 | 4.84 | 192.32 | 0.3618 | 1464.1 | 411.2 | |
| 0.93 | -3.00 | 0.50 | -3.00 | -24.85 | 250.41 | 4.56 | 191.34 | 0.3689 | 684.5 | 999999 | |
| 1.02 | -3.00 | 0.54 | -3.00 | -24.44 | 250.33 | 4.48 | 191.39 | 0.3622 | 1052.8 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -26.50 | 247.70 | 1.86 | 184.28 | 0.3896 | 642.0 | 590.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -26.41 | 247.43 | 1.59 | 183.69 | 0.3878 | 738.0 | 556.1 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -23.65 | 245.89 | 0.05 | 180.12 | 0.3420 | -836.0 | -667.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -28.24 | 245.55 | -0.29 | 179.38 | 0.4164 | -701.0 | -551.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -24.88 | 245.34 | -0.51 | 178.72 | 0.3623 | -799.0 | -681.6 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -23.75 | 245.05 | -0.79 | 177.88 | 0.3438 | -970.0 | -810.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -24.79 | 245.05 | -0.80 | 177.98 | 0.3608 | -855.0 | -666.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -23.15 | 244.29 | -1.56 | 175.70 | 0.3347 | -899.0 | -758.9 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -24.93 | 242.12 | -3.73 | 170.74 | 0.3679 | -873.0 | -683.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -25.60 | 242.03 | -3.81 | 170.85 | 0.3788 | -759.0 | -628.6 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -25.76 | 241.83 | -4.02 | 170.45 | 0.3819 | -714.0 | -523.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.80 | 241.79 | -4.05 | 168.06 | 0.3183 | -822.0 | -647.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -22.61 | 241.39 | -4.46 | 167.49 | 0.3328 | -709.0 | -588.2 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -20.59 | 240.72 | -5.12 | 163.93 | 0.3031 | -657.0 | -500.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -28.54 | 239.53 | -6.31 | 167.04 | 0.4325 | -739.0 | -530.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
