SDO HMI 2013-01-07 07:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.02 | 279.05 | 23.46 | 148.75 | -24.36 | 250.27 | 6.60 | 196.49 | 0.3700 | 788.9 | 369.1 | |
|
previous
or next observation for the same group /

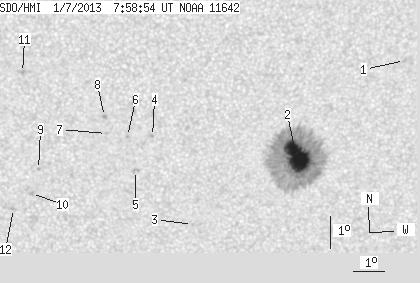

back to the solar disc SDO HMI 2013-01-07 07:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.81 | -21.36 | 253.92 | 10.26 | 208.68 | 0.3471 | -731.0 | -664.6 | |
| 44.02 | 262.50 | 23.46 | 139.97 | -24.38 | 250.62 | 6.95 | 197.36 | 0.3710 | 1486.2 | 445.1 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -26.55 | 247.30 | 3.63 | 188.32 | 0.3933 | 787.0 | 654.0 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -23.77 | 245.93 | 2.26 | 186.03 | 0.3456 | -901.0 | -710.8 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -24.84 | 245.39 | 1.73 | 184.36 | 0.3623 | -755.0 | -685.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -23.77 | 245.12 | 1.46 | 183.90 | 0.3444 | -736.0 | -651.2 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -23.68 | 244.45 | 0.78 | 182.10 | 0.3423 | -1016.0 | -749.9 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -23.14 | 244.38 | 0.72 | 181.98 | 0.3335 | -1010.0 | -772.3 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -24.81 | 242.24 | -1.42 | 176.41 | 0.3613 | -966.0 | -777.5 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -25.57 | 242.01 | -1.66 | 175.98 | 0.3740 | -812.0 | -666.5 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -21.77 | 241.77 | -1.89 | 174.33 | 0.3120 | -827.0 | -692.9 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -26.04 | 241.41 | -2.26 | 174.67 | 0.3824 | -713.0 | -636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
