SDO HMI 2013-01-07 15:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 288.24 | 23.27 | 155.40 | -24.43 | 250.16 | 10.88 | 205.79 | 0.3956 | 742.4 | 337.1 | |
|
previous
or next observation for the same group /

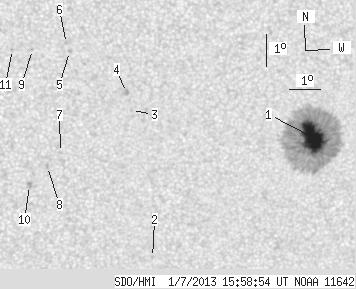

back to the solar disc SDO HMI 2013-01-07 15:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 274.41 | 23.27 | 148.07 | -24.45 | 250.53 | 11.25 | 206.63 | 0.3978 | 1425.9 | 398.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -28.32 | 245.49 | 6.21 | 192.90 | 0.4283 | -702.0 | -523.5 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -23.65 | 244.57 | 5.29 | 193.95 | 0.3520 | -750.0 | -582.9 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -23.08 | 244.39 | 5.11 | 193.91 | 0.3423 | -1006.0 | -882.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -21.81 | 242.53 | 3.25 | 189.65 | 0.3155 | -840.0 | -661.2 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -21.57 | 242.43 | 3.15 | 189.49 | 0.3112 | -880.0 | -573.7 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -24.98 | 242.31 | 3.03 | 187.55 | 0.3664 | -792.0 | -611.8 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -25.42 | 241.90 | 2.62 | 186.38 | 0.3728 | -980.0 | -753.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -21.75 | 241.35 | 2.07 | 186.22 | 0.3118 | -778.0 | -658.3 | |
| 0.00 | 2.46 | 0.00 | 1.32 | -26.02 | 241.32 | 2.04 | 184.83 | 0.3816 | -805.0 | -747.1 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -21.75 | 240.72 | 1.44 | 184.32 | 0.3109 | -948.0 | -794.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
