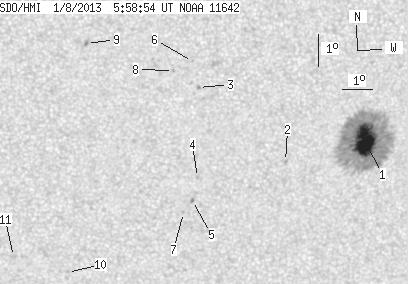

SDO HMI 2013-01-08 05:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.36 | 261.97 | 24.75 | 146.10 | -24.55 | 249.97 | 18.38 | 218.75 | 0.4598 | 774.6 | 332.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-08 05:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.36 | 249.34 | 24.75 | 139.19 | -24.52 | 250.30 | 18.71 | 219.35 | 0.4622 | 1342.1 | 384.0 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -25.26 | 247.71 | 16.13 | 214.38 | 0.4468 | 882.0 | 757.3 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -22.98 | 244.54 | 12.96 | 212.11 | 0.3901 | -917.0 | -822.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -25.81 | 244.81 | 13.22 | 208.75 | 0.4299 | -770.0 | -580.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -26.55 | 244.72 | 13.14 | 207.71 | 0.4392 | -760.0 | -679.9 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -22.17 | 244.27 | 12.69 | 212.80 | 0.3771 | -779.0 | -635.6 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -26.94 | 244.46 | 12.88 | 206.80 | 0.4425 | -682.0 | -538.8 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -22.46 | 243.68 | 12.09 | 211.16 | 0.3758 | -769.0 | -658.2 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -21.65 | 240.80 | 9.22 | 205.92 | 0.3420 | -1096.0 | -890.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -28.92 | 240.72 | 9.14 | 198.14 | 0.4482 | -650.0 | -556.4 | |
| 0.00 | 2.04 | 0.00 | 1.12 | -28.41 | 238.85 | 7.26 | 194.97 | 0.4323 | -758.0 | -624.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
