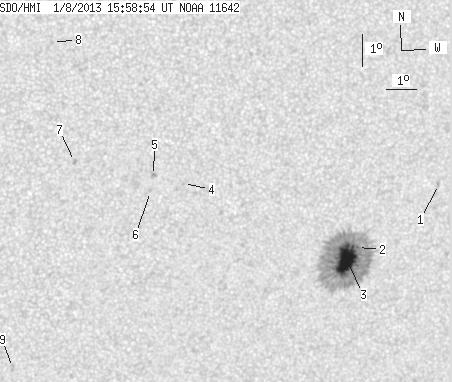

SDO HMI 2013-01-08 15:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.46 | 245.03 | 21.66 | 141.43 | -24.53 | 249.93 | 23.81 | 225.69 | 0.5151 | 854.0 | 339.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-08 15:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.94 | -22.18 | 252.97 | 26.86 | 232.55 | 0.5292 | -692.0 | -497.5 | |
| 0.68 | 234.85 | 0.39 | 135.82 | -24.22 | 250.51 | 24.40 | 226.87 | 0.5183 | 811.1 | 381.9 | |
| 36.78 | -2.00 | 21.27 | -2.00 | -24.60 | 250.20 | 24.08 | 225.94 | 0.5184 | 1317.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -22.35 | 244.20 | 18.09 | 221.92 | 0.4316 | -727.0 | -515.0 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -22.12 | 243.17 | 17.06 | 220.72 | 0.4183 | -834.0 | -770.1 | |
| 0.00 | 0.42 | 0.00 | 0.23 | -22.62 | 243.13 | 17.02 | 219.84 | 0.4236 | -610.0 | -500.0 | |
| 0.00 | 1.95 | 0.00 | 1.05 | -21.73 | 240.52 | 14.40 | 216.85 | 0.3870 | -923.0 | -772.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -18.09 | 239.48 | 13.37 | 221.65 | 0.3322 | 592.0 | 516.2 | |
| 0.00 | 2.38 | 0.00 | 1.33 | -28.27 | 239.18 | 13.07 | 205.67 | 0.4616 | -619.0 | -618.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
