SDO HMI 2013-01-09 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.44 | 230.57 | 24.49 | 139.37 | -24.55 | 249.92 | 29.32 | 231.05 | 0.5748 | 768.9 | 318.7 | |
|
previous
or next observation for the same group /

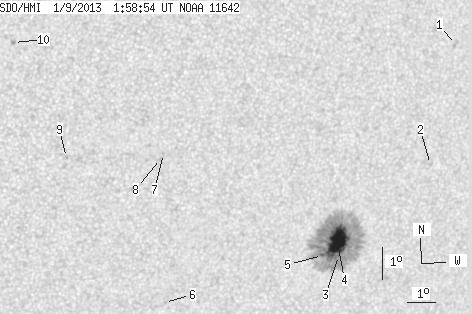

back to the solar disc SDO HMI 2013-01-09 01:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.49 | -18.45 | 253.00 | 32.40 | 242.86 | 0.5733 | -772.0 | -549.1 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.15 | 252.93 | 32.33 | 236.95 | 0.5932 | -649.0 | -535.8 | |
| 1.19 | 221.15 | 0.72 | 133.93 | -25.11 | 250.25 | 29.65 | 230.52 | 0.5826 | 600.7 | 348.7 | |
| 38.23 | -3.00 | 23.15 | -3.00 | -24.67 | 250.09 | 29.49 | 231.04 | 0.5776 | 1150.8 | 999999 | |
| 1.02 | -3.00 | 0.62 | -3.00 | -25.12 | 249.65 | 29.05 | 229.99 | 0.5762 | 793.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -26.78 | 244.26 | 23.66 | 222.35 | 0.5340 | -618.0 | -533.7 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -22.09 | 243.32 | 22.72 | 228.52 | 0.4796 | -731.0 | -574.5 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -22.25 | 243.24 | 22.64 | 228.17 | 0.4801 | -672.0 | -515.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -22.29 | 240.04 | 19.44 | 224.05 | 0.4447 | -765.0 | -627.1 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -18.79 | 237.84 | 17.24 | 227.29 | 0.3836 | 853.0 | 734.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
