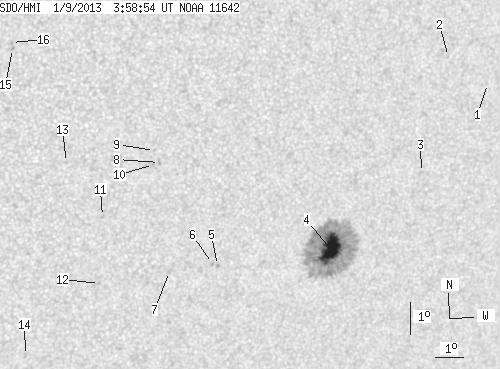

SDO HMI 2013-01-09 03:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.59 | 234.19 | 21.16 | 142.67 | -24.57 | 249.59 | 30.08 | 231.59 | 0.5834 | 483.5 | 286.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-09 03:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.42 | -19.38 | 254.64 | 35.13 | 242.91 | 0.6120 | -631.0 | -499.2 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -18.61 | 252.98 | 33.48 | 243.23 | 0.5877 | -725.0 | -638.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.20 | 252.84 | 33.34 | 237.56 | 0.6052 | -736.0 | -520.4 | |
| 34.59 | 215.16 | 21.16 | 131.70 | -24.68 | 250.06 | 30.55 | 231.88 | 0.5894 | 1196.4 | 358.3 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -25.34 | 246.04 | 26.53 | 227.41 | 0.5505 | -674.0 | -561.6 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -25.28 | 245.84 | 26.33 | 227.31 | 0.5479 | -770.0 | -639.0 | |
| 0.00 | 2.21 | 0.00 | 1.29 | -25.58 | 244.35 | 24.84 | 225.37 | 0.5346 | -524.0 | -482.5 | |
| 0.00 | 2.04 | 0.00 | 1.16 | -22.18 | 243.32 | 23.81 | 229.62 | 0.4928 | -770.0 | -636.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -21.81 | 243.08 | 23.57 | 229.98 | 0.4868 | -728.0 | -518.8 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -22.24 | 243.12 | 23.61 | 229.29 | 0.4911 | -822.0 | -695.1 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -23.91 | 241.64 | 22.13 | 224.90 | 0.4900 | -756.0 | -639.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -26.02 | 241.94 | 22.43 | 222.05 | 0.5141 | -656.0 | -488.2 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -22.25 | 240.13 | 20.62 | 225.72 | 0.4572 | -813.0 | -638.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -28.39 | 239.78 | 20.27 | 216.15 | 0.5188 | -755.0 | -632.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -18.79 | 237.87 | 18.36 | 229.01 | 0.3968 | 796.0 | 710.0 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -18.61 | 237.81 | 18.31 | 229.30 | 0.3944 | 732.0 | 590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
