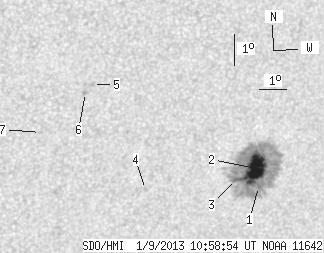

SDO HMI 2013-01-09 10:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.43 | 213.38 | 25.13 | 135.65 | -24.68 | 249.80 | 34.11 | 234.43 | 0.6286 | 906.1 | 281.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-09 10:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 206.25 | 0.55 | 131.42 | -25.26 | 250.32 | 34.63 | 233.97 | 0.6379 | -175.0 | 317.2 | |
| 36.63 | -1.00 | 23.34 | -1.00 | -24.69 | 250.02 | 34.33 | 234.57 | 0.6312 | 1220.1 | 999999 | |
| 1.95 | -1.00 | 1.24 | -1.00 | -25.07 | 249.39 | 33.70 | 233.63 | 0.6266 | 820.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.99 | -25.50 | 246.02 | 30.33 | 230.53 | 0.5926 | -733.0 | -572.6 | |
| 0.00 | 2.04 | 0.00 | 1.20 | -22.28 | 243.27 | 27.58 | 233.15 | 0.5376 | -781.0 | -620.9 | |
| 0.00 | 2.55 | 0.00 | 1.49 | -22.53 | 243.07 | 27.38 | 232.56 | 0.5372 | -740.0 | -634.0 | |
| 0.00 | 0.93 | 0.00 | 0.55 | -23.83 | 241.73 | 26.04 | 229.27 | 0.5321 | -751.0 | -621.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
