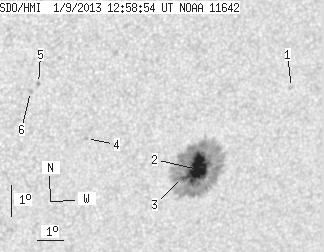

SDO HMI 2013-01-09 12:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.02 | 213.85 | 23.25 | 137.82 | -24.69 | 249.90 | 35.31 | 235.18 | 0.6419 | 902.7 | 288.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-09 12:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.40 | -22.06 | 252.92 | 38.33 | 240.59 | 0.6622 | -681.0 | -521.2 | |
| 34.75 | 207.32 | 22.43 | 133.79 | -24.75 | 250.01 | 35.42 | 235.18 | 0.6435 | 1191.4 | 320.3 | |
| 1.27 | -2.00 | 0.82 | -2.00 | -25.02 | 249.50 | 34.91 | 234.48 | 0.6395 | 899.9 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -23.93 | 245.47 | 30.88 | 233.27 | 0.5875 | -572.0 | -525.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.28 | 243.29 | 28.70 | 234.10 | 0.5507 | -842.0 | -692.3 | |
| 0.00 | 2.21 | 0.00 | 1.31 | -22.53 | 243.06 | 28.46 | 233.50 | 0.5498 | -769.0 | -656.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
