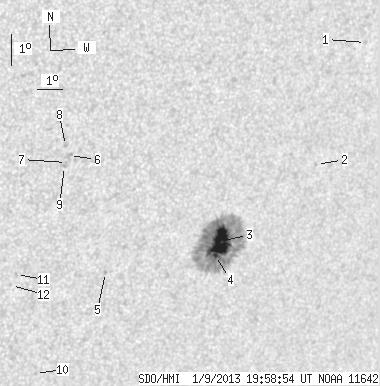

SDO HMI 2013-01-09 19:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.86 | 212.23 | 22.27 | 143.26 | -24.64 | 249.69 | 38.96 | 237.32 | 0.6812 | 586.4 | 270.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-09 19:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.59 | -18.31 | 253.90 | 43.17 | 247.81 | 0.7038 | -631.0 | -519.5 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -22.12 | 253.09 | 42.36 | 242.30 | 0.7074 | -673.0 | -580.0 | |
| 31.08 | 200.69 | 21.06 | 135.98 | -24.68 | 249.96 | 39.23 | 237.42 | 0.6844 | 1169.2 | 323.3 | |
| 1.78 | -3.00 | 1.21 | -3.00 | -25.13 | 249.92 | 39.19 | 236.79 | 0.6861 | 849.6 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -25.84 | 245.67 | 34.93 | 233.38 | 0.6445 | -658.0 | -541.5 | |
| 0.00 | 3.06 | 0.00 | 1.88 | -22.23 | 243.19 | 32.46 | 236.99 | 0.5947 | -736.0 | -623.6 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -22.45 | 243.14 | 32.41 | 236.62 | 0.5954 | -783.0 | -640.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -21.93 | 242.97 | 32.23 | 237.30 | 0.5902 | -700.0 | -522.2 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -22.58 | 243.10 | 32.36 | 236.40 | 0.5957 | -706.0 | -557.4 | |
| 0.00 | 0.76 | 0.00 | 0.50 | -29.17 | 244.02 | 33.29 | 227.77 | 0.6496 | -416.0 | -396.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -26.02 | 242.23 | 31.50 | 230.72 | 0.6088 | -708.0 | -522.6 | |
| 0.00 | 0.59 | 0.00 | 0.37 | -26.38 | 242.15 | 31.41 | 230.16 | 0.6104 | -717.0 | -700.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
