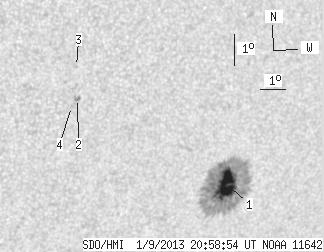

SDO HMI 2013-01-09 20:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.29 | 198.31 | 22.72 | 135.05 | -24.63 | 249.80 | 39.62 | 237.68 | 0.6882 | 921.8 | 303.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-01-09 20:58:54 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.29 | 193.30 | 22.72 | 131.96 | -24.69 | 249.96 | 39.78 | 237.68 | 0.6903 | 1130.7 | 329.7 | |
| 0.00 | 3.06 | 0.00 | 1.89 | -22.25 | 243.21 | 33.03 | 237.35 | 0.6015 | -657.0 | -661.3 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -21.27 | 242.92 | 32.74 | 238.67 | 0.5923 | -669.0 | -515.1 | |
| 0.00 | 1.10 | 0.00 | 0.68 | -22.51 | 243.05 | 32.87 | 236.86 | 0.6011 | -655.0 | -601.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
