SDO HMI 2013-02-21 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.85 | 757.78 | 149.69 | 700.55 | 10.12 | 70.16 | 55.20 | 286.83 | 0.8451 | -17.6 | 8.5 | |
|
previous
or next observation for the same group /

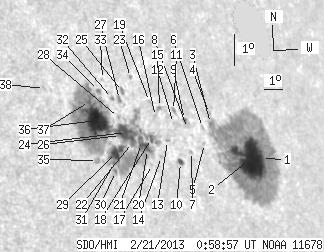

back to the solar disc SDO HMI 2013-02-21 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.90 | 379.32 | 5.05 | 382.21 | 10.14 | 74.00 | 59.04 | 285.68 | 0.8787 | 158.3 | -204.2 | |
| 63.75 | -1.00 | 64.24 | -1.00 | 10.03 | 73.26 | 58.30 | 285.76 | 0.8726 | -720.4 | 999999 | |
| 1.29 | -1.00 | 1.24 | -1.00 | 10.94 | 71.34 | 56.37 | 287.33 | 0.8585 | 227.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.16 | 11.25 | 71.37 | 56.41 | 287.67 | 0.8596 | 152.0 | 217.1 | |
| 0.00 | 0.77 | 0.00 | 0.73 | 10.26 | 70.82 | 55.86 | 286.73 | 0.8525 | -599.0 | -578.8 | |
| 0.00 | 1.46 | 0.00 | 1.38 | 10.76 | 70.85 | 55.89 | 287.28 | 0.8539 | -276.0 | -296.1 | |
| 0.00 | 1.37 | 0.00 | 1.26 | 9.94 | 70.04 | 55.07 | 286.59 | 0.8448 | -519.0 | -435.8 | |
| 0.00 | 0.77 | 0.00 | 0.71 | 10.64 | 70.01 | 55.05 | 287.41 | 0.8463 | -247.0 | -277.3 | |
| 1.03 | 3.26 | 0.95 | 3.02 | 10.91 | 69.93 | 54.97 | 287.74 | 0.8463 | -369.4 | -435.0 | |
| 2.23 | 3.52 | 2.01 | 3.18 | 9.53 | 69.36 | 54.40 | 286.33 | 0.8377 | 285.3 | 204.5 | |
| 0.00 | 2.32 | 0.00 | 2.12 | 11.14 | 69.41 | 54.45 | 288.16 | 0.8423 | -524.0 | -452.3 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 10.72 | 69.30 | 54.34 | 287.72 | 0.8402 | -317.0 | -313.5 | |
| 0.00 | 1.46 | 0.00 | 1.31 | 10.15 | 68.84 | 53.88 | 287.21 | 0.8346 | 165.0 | -34.1 | |
| 0.00 | 1.20 | 0.00 | 1.06 | 9.62 | 68.40 | 53.44 | 286.73 | 0.8291 | -452.0 | -400.4 | |
| 0.43 | 2.15 | 0.39 | 1.92 | 11.16 | 68.69 | 53.73 | 288.42 | 0.8359 | -504.4 | -422.7 | |
| 0.00 | 1.98 | 0.00 | 1.76 | 10.85 | 68.40 | 53.44 | 288.16 | 0.8324 | -288.0 | -289.9 | |
| 0.00 | 0.52 | 0.00 | 0.45 | 9.32 | 67.88 | 52.92 | 286.54 | 0.8235 | 78.0 | 62.0 | |
| 2.32 | 335.94 | 2.03 | 280.87 | 10.13 | 68.02 | 53.06 | 287.45 | 0.8269 | 189.5 | 332.8 | |
| 0.00 | 1.80 | 0.00 | 1.60 | 11.30 | 68.22 | 53.26 | 288.74 | 0.8319 | -328.0 | -295.2 | |
| 3.52 | -18.00 | 3.06 | -18.00 | 9.76 | 67.73 | 52.77 | 287.12 | 0.8232 | -476.5 | 999999 | |
| 6.70 | -18.00 | 5.79 | -18.00 | 9.92 | 67.47 | 52.51 | 287.39 | 0.8212 | 347.0 | 999999 | |
| 1.46 | -18.00 | 1.25 | -18.00 | 9.91 | 67.02 | 52.06 | 287.52 | 0.8169 | -188.4 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.28 | 11.96 | 67.44 | 52.48 | 289.77 | 0.8268 | 312.0 | 281.5 | |
| 18.73 | -18.00 | 15.95 | -18.00 | 10.19 | 66.79 | 51.83 | 287.94 | 0.8155 | 484.4 | 999999 | |
| 0.95 | 2.84 | 0.81 | 2.44 | 11.47 | 66.91 | 51.95 | 289.40 | 0.8204 | 353.6 | 218.7 | |
| 2.49 | -18.00 | 2.10 | -18.00 | 10.07 | 66.47 | 51.51 | 287.90 | 0.8121 | -160.8 | 999999 | |
| 1.03 | 2.58 | 0.88 | 2.20 | 11.20 | 66.69 | 51.73 | 289.16 | 0.8175 | 408.7 | 320.2 | |
| 0.00 | 1.37 | 0.00 | 1.17 | 10.63 | 66.50 | 51.54 | 288.55 | 0.8140 | 231.0 | 135.5 | |
| 11.86 | -18.00 | 9.91 | -18.00 | 9.52 | 66.15 | 51.19 | 287.35 | 0.8074 | 711.6 | 999999 | |
| 0.86 | -18.00 | 0.71 | -18.00 | 8.92 | 65.98 | 51.02 | 286.69 | 0.8040 | 532.2 | 999999 | |
| 0.86 | -18.00 | 0.71 | -18.00 | 9.19 | 65.99 | 51.03 | 287.02 | 0.8049 | 698.3 | 999999 | |
| 0.52 | 1.80 | 0.44 | 1.53 | 11.20 | 66.35 | 51.39 | 289.28 | 0.8143 | 384.8 | 282.1 | |
| 0.00 | 0.95 | 0.00 | 0.80 | 11.76 | 66.01 | 51.05 | 290.05 | 0.8127 | 170.0 | 119.9 | |
| 0.86 | 2.41 | 0.72 | 2.02 | 11.39 | 65.72 | 50.76 | 289.72 | 0.8088 | 354.3 | 277.5 | |
| 0.00 | 3.09 | 0.00 | 2.52 | 9.18 | 65.18 | 50.22 | 287.28 | 0.7967 | 766.0 | 668.3 | |
| 36.86 | -18.00 | 30.46 | -18.00 | 10.43 | 65.40 | 50.43 | 288.70 | 0.8027 | 843.5 | 999999 | |
| 1.20 | -18.00 | 0.99 | -18.00 | 11.00 | 65.20 | 50.23 | 289.45 | 0.8025 | 595.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.23 | 11.20 | 63.15 | 48.19 | 290.49 | 0.7828 | 638.0 | 506.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
