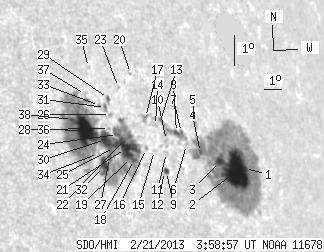

SDO HMI 2013-02-21 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.38 | 763.72 | 151.43 | 737.27 | 10.15 | 70.19 | 56.87 | 286.36 | 0.8596 | 11.1 | -28.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-02-21 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.21 | 367.63 | 4.58 | 389.32 | 10.17 | 74.02 | 60.70 | 285.28 | 0.8917 | 159.2 | -231.8 | |
| 51.23 | -1.00 | 54.49 | -1.00 | 10.01 | 73.42 | 60.10 | 285.26 | 0.8868 | -747.5 | 999999 | |
| 4.90 | -1.00 | 5.08 | -1.00 | 10.23 | 72.58 | 59.26 | 285.72 | 0.8807 | -793.7 | 999999 | |
| 1.63 | -1.00 | 1.64 | -1.00 | 10.39 | 71.46 | 58.14 | 286.21 | 0.8720 | -555.5 | 999999 | |
| 0.00 | 2.66 | 0.00 | 2.69 | 11.28 | 71.45 | 58.13 | 287.20 | 0.8739 | 232.0 | 175.6 | |
| 0.00 | 0.95 | 0.00 | 0.93 | 10.55 | 70.71 | 57.39 | 286.60 | 0.8662 | -356.0 | -326.2 | |
| 0.77 | 20.11 | 0.76 | 19.48 | 10.90 | 70.54 | 57.22 | 287.05 | 0.8655 | -451.7 | -447.6 | |
| 2.23 | -7.00 | 2.18 | -7.00 | 10.87 | 70.25 | 56.93 | 287.10 | 0.8630 | -532.6 | 999999 | |
| 1.55 | 3.61 | 1.46 | 3.40 | 9.58 | 69.34 | 56.02 | 285.90 | 0.8523 | 164.7 | 32.1 | |
| 0.00 | 1.98 | 0.00 | 1.89 | 10.56 | 69.60 | 56.28 | 286.94 | 0.8569 | -286.0 | -283.0 | |
| 0.00 | 1.55 | 0.00 | 1.47 | 10.18 | 69.50 | 56.18 | 286.54 | 0.8550 | -476.0 | -340.4 | |
| 0.52 | -9.00 | 0.48 | -9.00 | 9.57 | 69.23 | 55.91 | 285.92 | 0.8513 | -128.0 | 999999 | |
| 0.95 | -7.00 | 0.90 | -7.00 | 11.16 | 69.45 | 56.13 | 287.66 | 0.8570 | -467.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 10.97 | 69.12 | 55.80 | 287.55 | 0.8537 | -350.0 | -295.8 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 10.17 | 68.85 | 55.53 | 286.72 | 0.8494 | -242.0 | -206.6 | |
| 0.00 | 1.29 | 0.00 | 1.19 | 10.19 | 68.42 | 55.10 | 286.87 | 0.8457 | -93.0 | -141.5 | |
| 0.00 | 5.50 | 0.00 | 5.14 | 11.17 | 68.64 | 55.32 | 287.92 | 0.8500 | -630.0 | -536.4 | |
| 1.89 | 343.48 | 1.71 | 298.36 | 9.78 | 67.69 | 54.37 | 286.62 | 0.8381 | -725.2 | 303.0 | |
| 0.52 | -18.00 | 0.46 | -18.00 | 9.82 | 67.54 | 54.22 | 286.72 | 0.8369 | -254.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 12.50 | 68.25 | 54.93 | 289.55 | 0.8500 | 337.0 | 284.9 | |
| 23.47 | -18.00 | 21.02 | -18.00 | 10.07 | 67.30 | 53.98 | 287.09 | 0.8353 | 408.5 | 999999 | |
| 0.86 | -18.00 | 0.77 | -18.00 | 10.35 | 67.32 | 54.00 | 287.41 | 0.8362 | -288.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 11.98 | 67.45 | 54.13 | 289.23 | 0.8417 | 349.0 | 296.2 | |
| 2.15 | -18.00 | 1.92 | -18.00 | 10.47 | 66.99 | 53.67 | 287.65 | 0.8335 | 410.9 | 999999 | |
| 0.52 | -18.00 | 0.46 | -18.00 | 10.05 | 66.73 | 53.41 | 287.24 | 0.8300 | -384.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.30 | 11.07 | 66.79 | 53.47 | 288.41 | 0.8333 | 234.0 | 197.1 | |
| 2.49 | -18.00 | 2.18 | -18.00 | 9.71 | 66.39 | 53.07 | 286.95 | 0.8259 | 549.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.91 | 10.62 | 66.62 | 53.30 | 287.95 | 0.8305 | 336.0 | 280.6 | |
| 0.86 | 2.75 | 0.77 | 2.46 | 11.57 | 66.82 | 53.50 | 288.97 | 0.8349 | 224.8 | 154.7 | |
| 12.21 | -18.00 | 10.69 | -18.00 | 10.25 | 66.32 | 53.00 | 287.61 | 0.8267 | 529.7 | 999999 | |
| 0.95 | 1.98 | 0.84 | 1.75 | 11.27 | 66.58 | 53.26 | 288.70 | 0.8320 | 361.2 | 266.6 | |
| 9.80 | -18.00 | 8.48 | -18.00 | 9.40 | 66.07 | 52.75 | 286.69 | 0.8221 | 761.5 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.14 | 11.30 | 66.29 | 52.97 | 288.84 | 0.8293 | 455.0 | 369.5 | |
| 0.00 | 0.77 | 0.00 | 0.67 | 9.78 | 65.86 | 52.54 | 287.21 | 0.8211 | 507.0 | 510.8 | |
| 0.00 | 1.12 | 0.00 | 0.99 | 12.46 | 66.06 | 52.74 | 290.26 | 0.8306 | 309.0 | 209.0 | |
| 34.98 | -18.00 | 29.98 | -18.00 | 10.44 | 65.37 | 52.05 | 288.15 | 0.8183 | 897.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.90 | 11.58 | 65.66 | 52.34 | 289.38 | 0.8243 | 204.0 | 170.5 | |
| 0.69 | -18.00 | 0.58 | -18.00 | 10.72 | 64.80 | 51.48 | 288.68 | 0.8137 | 867.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
