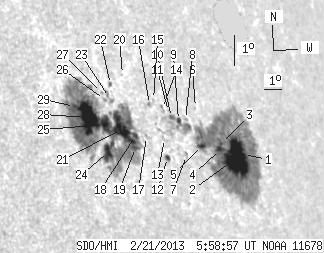

SDO HMI 2013-02-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.03 | 766.37 | 152.52 | 761.82 | 10.17 | 70.02 | 57.79 | 286.12 | 0.8673 | 27.4 | -19.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-02-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.07 | 353.18 | 5.72 | 388.60 | 10.21 | 74.03 | 61.80 | 285.04 | 0.9000 | 177.6 | -220.0 | |
| 47.29 | -1.00 | 52.18 | -1.00 | 10.02 | 73.45 | 61.23 | 284.98 | 0.8954 | -828.8 | 999999 | |
| 0.95 | -1.00 | 1.02 | -1.00 | 10.40 | 72.70 | 60.48 | 285.59 | 0.8905 | -666.2 | 999999 | |
| 3.61 | -1.00 | 3.88 | -1.00 | 10.20 | 72.58 | 60.35 | 285.40 | 0.8891 | -872.5 | 999999 | |
| 4.21 | -1.00 | 4.36 | -1.00 | 10.20 | 71.43 | 59.20 | 285.71 | 0.8802 | -729.9 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.36 | 11.37 | 71.46 | 59.23 | 286.99 | 0.8828 | 314.0 | 316.0 | |
| 0.00 | 2.32 | 0.00 | 2.33 | 9.78 | 70.43 | 58.20 | 285.52 | 0.8713 | -471.0 | -489.7 | |
| 0.00 | 1.29 | 0.00 | 1.32 | 10.92 | 70.72 | 58.49 | 286.70 | 0.8760 | -492.0 | -432.1 | |
| 1.89 | 32.33 | 1.90 | 32.27 | 10.85 | 70.29 | 58.06 | 286.74 | 0.8723 | -407.0 | -336.1 | |
| 1.63 | -9.00 | 1.63 | -9.00 | 10.90 | 69.90 | 57.68 | 286.91 | 0.8693 | -642.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.77 | 11.07 | 69.79 | 57.56 | 287.13 | 0.8687 | -474.0 | -416.3 | |
| 1.89 | 3.01 | 1.83 | 2.92 | 9.60 | 69.31 | 57.08 | 285.63 | 0.8615 | 193.9 | 143.2 | |
| 0.00 | 1.89 | 0.00 | 1.84 | 10.19 | 69.30 | 57.07 | 286.28 | 0.8627 | -533.0 | -258.0 | |
| 0.00 | 2.58 | 0.00 | 2.54 | 11.13 | 69.47 | 57.24 | 287.29 | 0.8662 | -472.0 | -445.8 | |
| 0.00 | 0.69 | 0.00 | 0.67 | 11.36 | 69.04 | 56.81 | 287.68 | 0.8632 | -502.0 | -363.5 | |
| 0.00 | 1.72 | 0.00 | 1.66 | 11.18 | 68.76 | 56.53 | 287.56 | 0.8604 | -520.0 | -467.8 | |
| 0.00 | 1.38 | 0.00 | 1.30 | 10.14 | 68.29 | 56.07 | 286.53 | 0.8540 | -234.0 | -252.1 | |
| 1.46 | 355.50 | 1.36 | 316.69 | 10.11 | 67.69 | 55.46 | 286.67 | 0.8487 | 97.9 | 299.8 | |
| 1.89 | -18.00 | 1.75 | -18.00 | 9.73 | 67.59 | 55.37 | 286.27 | 0.8469 | -509.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 11.98 | 67.54 | 55.31 | 288.85 | 0.8520 | 297.0 | 247.0 | |
| 24.07 | -18.00 | 22.01 | -18.00 | 10.22 | 66.98 | 54.75 | 287.02 | 0.8426 | 515.1 | 999999 | |
| 0.60 | 1.72 | 0.55 | 1.58 | 11.59 | 66.78 | 54.55 | 288.65 | 0.8444 | 162.1 | 94.4 | |
| 0.00 | 5.07 | 0.00 | 4.63 | 11.17 | 66.61 | 54.38 | 288.22 | 0.8418 | 194.0 | 223.5 | |
| 12.64 | -18.00 | 11.24 | -18.00 | 9.46 | 66.12 | 53.89 | 286.40 | 0.8329 | 756.6 | 999999 | |
| 10.83 | -18.00 | 9.71 | -18.00 | 10.29 | 66.17 | 53.94 | 287.36 | 0.8355 | 584.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.17 | 11.08 | 66.32 | 54.09 | 288.21 | 0.8390 | 373.0 | 288.5 | |
| 0.00 | 1.03 | 0.00 | 0.93 | 11.29 | 66.22 | 54.00 | 288.48 | 0.8386 | 427.0 | 375.8 | |
| 37.40 | -18.00 | 32.86 | -18.00 | 10.42 | 65.33 | 53.10 | 287.78 | 0.8282 | 980.1 | 999999 | |
| 0.60 | -18.00 | 0.52 | -18.00 | 10.70 | 64.70 | 52.47 | 288.31 | 0.8230 | 997.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
