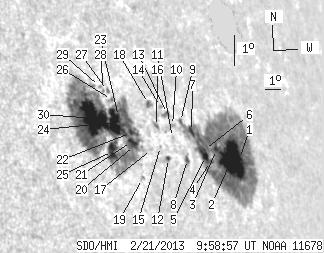

SDO HMI 2013-02-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.86 | 750.33 | 163.80 | 797.20 | 10.16 | 69.98 | 59.93 | 285.52 | 0.8843 | 59.3 | -22.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-02-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 363.94 | 7.14 | 430.65 | 10.12 | 74.07 | 64.03 | 284.40 | 0.9155 | 300.4 | -202.3 | |
| 42.39 | -1.00 | 50.52 | -1.00 | 10.02 | 73.49 | 63.44 | 284.44 | 0.9114 | -882.1 | 999999 | |
| 1.89 | -1.00 | 2.18 | -1.00 | 10.22 | 72.56 | 62.51 | 284.88 | 0.9051 | -769.5 | 999999 | |
| 1.46 | -1.00 | 1.65 | -1.00 | 9.80 | 72.02 | 61.97 | 284.55 | 0.9005 | -755.5 | 999999 | |
| 3.44 | -1.00 | 3.85 | -1.00 | 9.92 | 71.74 | 61.69 | 284.75 | 0.8987 | -771.7 | 999999 | |
| 0.95 | -1.00 | 1.06 | -1.00 | 10.13 | 71.74 | 61.70 | 284.98 | 0.8991 | -813.0 | 999999 | |
| 4.13 | -1.00 | 4.55 | -1.00 | 10.62 | 71.08 | 61.04 | 285.67 | 0.8951 | -454.3 | 999999 | |
| 1.63 | 4.90 | 1.75 | 5.26 | 9.69 | 70.53 | 60.49 | 284.81 | 0.8892 | -653.6 | -551.5 | |
| 0.95 | -1.00 | 1.02 | -1.00 | 10.86 | 70.48 | 60.44 | 286.10 | 0.8910 | -551.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 2.10 | 10.67 | 69.93 | 59.89 | 286.04 | 0.8864 | -562.0 | -525.3 | |
| 0.00 | 1.12 | 0.00 | 1.18 | 10.29 | 69.81 | 59.76 | 285.65 | 0.8847 | -476.0 | -465.5 | |
| 1.29 | 3.44 | 1.33 | 3.55 | 9.60 | 69.36 | 59.31 | 285.01 | 0.8798 | 259.5 | 133.2 | |
| 0.86 | 4.30 | 0.91 | 4.53 | 11.02 | 69.75 | 59.70 | 286.48 | 0.8857 | -643.1 | -539.1 | |
| 0.00 | 1.81 | 0.00 | 1.89 | 11.20 | 69.38 | 59.34 | 286.77 | 0.8833 | -354.0 | -402.0 | |
| 0.00 | 0.95 | 0.00 | 0.97 | 9.92 | 68.98 | 58.94 | 285.47 | 0.8775 | 220.0 | 147.6 | |
| 0.69 | 3.10 | 0.71 | 3.18 | 10.54 | 68.93 | 58.89 | 286.16 | 0.8783 | 304.5 | 157.9 | |
| 0.00 | 1.20 | 0.00 | 1.21 | 9.77 | 68.41 | 58.37 | 285.45 | 0.8725 | -408.0 | -329.4 | |
| 1.20 | 3.61 | 1.23 | 3.71 | 11.22 | 68.68 | 58.64 | 286.98 | 0.8778 | -523.1 | -267.4 | |
| 0.00 | 1.89 | 0.00 | 1.85 | 8.80 | 67.64 | 57.59 | 284.57 | 0.8641 | 361.0 | 220.0 | |
| 1.46 | 351.73 | 1.43 | 331.01 | 9.79 | 67.44 | 57.40 | 285.74 | 0.8646 | -234.0 | 257.9 | |
| 3.95 | -20.00 | 3.86 | -20.00 | 9.90 | 67.31 | 57.26 | 285.90 | 0.8637 | 217.6 | 999999 | |
| 1.89 | -20.00 | 1.85 | -20.00 | 10.19 | 67.39 | 57.34 | 286.20 | 0.8650 | 151.9 | 999999 | |
| 1.29 | -20.00 | 1.25 | -20.00 | 10.62 | 66.78 | 56.74 | 286.86 | 0.8609 | -213.3 | 999999 | |
| 19.60 | -20.00 | 18.78 | -20.00 | 10.40 | 66.50 | 56.46 | 286.70 | 0.8580 | 510.0 | 999999 | |
| 12.98 | -20.00 | 12.24 | -20.00 | 9.47 | 66.14 | 56.10 | 285.75 | 0.8527 | 713.5 | 999999 | |
| 0.43 | 2.41 | 0.41 | 2.32 | 11.12 | 66.55 | 56.50 | 287.49 | 0.8600 | 203.4 | 192.2 | |
| 0.52 | 1.89 | 0.50 | 1.82 | 11.38 | 66.41 | 56.36 | 287.83 | 0.8595 | 185.3 | 88.1 | |
| 0.00 | 0.86 | 0.00 | 0.82 | 11.36 | 66.18 | 56.14 | 287.87 | 0.8575 | 395.0 | 383.4 | |
| 0.00 | 1.20 | 0.00 | 1.15 | 11.46 | 65.99 | 55.95 | 288.05 | 0.8561 | 366.0 | 303.4 | |
| 49.01 | -20.00 | 45.58 | -20.00 | 10.41 | 65.42 | 55.38 | 287.04 | 0.8486 | 987.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
