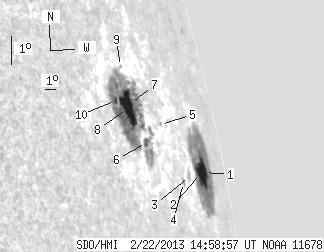

SDO HMI 2013-02-22 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.88 | 313.28 | 120.42 | 720.73 | 10.05 | 69.92 | 75.79 | 282.05 | 0.9748 | 151.3 | 60.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-02-22 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.91 | 123.80 | 26.05 | 392.50 | 9.75 | 73.98 | 79.85 | 281.05 | 0.9892 | 650.1 | -23.6 | |
| 13.76 | -1.00 | 41.35 | -1.00 | 9.62 | 73.19 | 79.06 | 281.05 | 0.9870 | -549.4 | 999999 | |
| 0.00 | 3.44 | 0.00 | 8.56 | 9.30 | 71.28 | 77.15 | 281.02 | 0.9811 | -555.0 | -428.4 | |
| 0.00 | 2.32 | 0.00 | 5.36 | 8.99 | 70.26 | 76.14 | 280.88 | 0.9775 | -380.0 | -337.7 | |
| 0.00 | 0.95 | 0.00 | 1.96 | 10.56 | 68.54 | 74.41 | 282.76 | 0.9720 | -173.0 | -150.1 | |
| 2.58 | 26.05 | 4.64 | 47.46 | 9.77 | 66.55 | 72.42 | 282.31 | 0.9628 | 360.1 | 44.0 | |
| 6.02 | 155.69 | 10.41 | 263.11 | 10.85 | 65.59 | 71.46 | 283.60 | 0.9593 | -278.1 | 221.6 | |
| 20.29 | -7.00 | 34.25 | -7.00 | 10.65 | 65.19 | 71.06 | 283.47 | 0.9572 | 691.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.78 | 11.95 | 65.30 | 71.18 | 284.79 | 0.9590 | 96.0 | 98.9 | |
| 2.32 | -7.00 | 3.72 | -7.00 | 10.77 | 64.15 | 70.02 | 283.80 | 0.9521 | 847.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
