SDO HMI 2013-03-28 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.91 | 249.94 | 25.38 | 135.28 | 14.94 | 255.28 | -9.67 | 23.85 | 0.4035 | -957.3 | -383.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-03-28 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

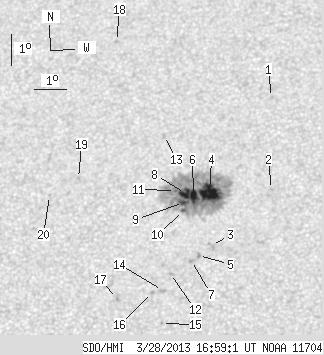

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.48 | 18.16 | 257.52 | -7.43 | 16.32 | 0.4390 | -613.0 | -430.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 15.16 | 257.63 | -7.32 | 18.31 | 0.3930 | -750.0 | -567.2 | |
| 0.00 | 3.06 | 0.00 | 1.64 | 13.40 | 255.82 | -9.13 | 24.26 | 0.3771 | -750.0 | -698.5 | |
| 23.19 | 227.97 | 12.54 | 123.43 | 15.10 | 255.69 | -9.26 | 22.77 | 0.4030 | -1302.8 | -374.2 | |
| 0.00 | 2.01 | 0.00 | 1.07 | 13.09 | 255.43 | -9.52 | 25.54 | 0.3752 | -1019.0 | -849.5 | |
| 9.28 | -4.00 | 5.02 | -4.00 | 14.98 | 255.19 | -9.75 | 23.98 | 0.4044 | -1297.0 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.03 | 12.93 | 255.22 | -9.73 | 26.22 | 0.3744 | -1040.0 | -851.1 | |
| 8.05 | -4.00 | 4.36 | -4.00 | 15.08 | 254.94 | -10.01 | 24.43 | 0.4075 | -1068.9 | 999999 | |
| 4.03 | -4.00 | 2.18 | -4.00 | 14.80 | 254.89 | -10.06 | 24.84 | 0.4037 | -1001.3 | 999999 | |
| 1.31 | -4.00 | 0.71 | -4.00 | 14.54 | 254.90 | -10.05 | 25.10 | 0.3999 | -929.5 | 999999 | |
| 1.05 | -4.00 | 0.57 | -4.00 | 15.19 | 254.62 | -10.33 | 25.00 | 0.4112 | -765.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 12.54 | 254.58 | -10.37 | 28.20 | 0.3734 | -895.0 | -626.4 | |
| 0.00 | 2.01 | 0.00 | 1.11 | 16.98 | 254.17 | -10.77 | 24.09 | 0.4398 | 725.0 | 664.5 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 12.00 | 254.35 | -10.60 | 29.43 | 0.3677 | -840.0 | -785.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 10.97 | 254.36 | -10.59 | 30.89 | 0.3530 | -766.0 | -615.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 11.95 | 254.04 | -10.91 | 30.22 | 0.3694 | -867.0 | -653.8 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 11.79 | 252.95 | -11.99 | 32.88 | 0.3763 | -853.0 | -706.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 20.14 | 252.41 | -12.54 | 24.41 | 0.4951 | -744.0 | -677.3 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 15.66 | 251.51 | -13.43 | 30.66 | 0.4406 | 756.0 | 672.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 15.14 | 250.62 | -14.33 | 32.95 | 0.4410 | 743.0 | 643.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
