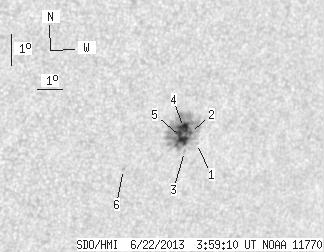

SDO HMI 2013-06-22 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.52 | 91.50 | 12.85 | 60.19 | -14.81 | 253.25 | 38.04 | 244.79 | 0.6607 | 875.8 | 469.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-06-22 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.42 | -15.13 | 253.89 | 38.68 | 244.67 | 0.6698 | 305.0 | 225.7 | |
| 1.00 | 88.32 | 0.66 | 58.11 | -14.77 | 253.58 | 38.36 | 245.01 | 0.6644 | 655.8 | 477.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -15.37 | 253.46 | 38.25 | 244.10 | 0.6659 | 120.0 | 121.2 | |
| 8.08 | -2.00 | 5.31 | -2.00 | -14.61 | 253.26 | 38.05 | 245.09 | 0.6599 | 1045.9 | 999999 | |
| 10.44 | -2.00 | 6.88 | -2.00 | -14.92 | 253.25 | 38.03 | 244.63 | 0.6612 | 992.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -15.90 | 251.15 | 35.93 | 242.06 | 0.6411 | 641.0 | 505.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
