SDO HMI 2013-06-22 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.43 | 80.26 | 9.90 | 55.06 | -14.80 | 253.37 | 40.89 | 246.16 | 0.6942 | 911.6 | 463.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-06-22 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

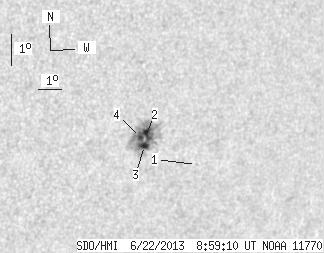

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.46 | -15.67 | 255.78 | 43.30 | 246.06 | 0.7248 | 466.0 | 427.7 | |
| 5.99 | 79.62 | 4.11 | 54.60 | -14.62 | 253.39 | 40.91 | 246.42 | 0.6937 | 958.9 | 463.8 | |
| 5.81 | -2.00 | 3.99 | -2.00 | -15.00 | 253.39 | 40.92 | 245.90 | 0.6953 | 892.0 | 999999 | |
| 2.63 | -2.00 | 1.80 | -2.00 | -14.74 | 253.16 | 40.69 | 246.15 | 0.6917 | 1094.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
