SDO HMI 2013-06-22 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.52 | 74.07 | 10.93 | 52.14 | -14.78 | 253.35 | 42.52 | 246.90 | 0.7128 | 898.7 | 441.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-06-22 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

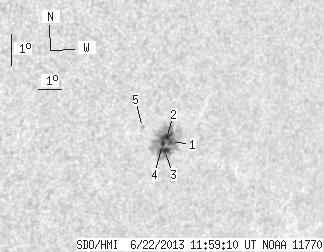

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 73.07 | 1.99 | 51.45 | -14.72 | 253.54 | 42.71 | 247.06 | 0.7147 | 747.6 | 440.5 | |
| 5.26 | -1.00 | 3.70 | -1.00 | -14.59 | 253.34 | 42.51 | 247.15 | 0.7119 | 1028.3 | 999999 | |
| 5.45 | -1.00 | 3.84 | -1.00 | -15.01 | 253.35 | 42.52 | 246.60 | 0.7137 | 886.5 | 999999 | |
| 2.00 | -1.00 | 1.40 | -1.00 | -14.78 | 253.21 | 42.38 | 246.84 | 0.7112 | 1059.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -14.25 | 252.24 | 41.41 | 247.14 | 0.6980 | 542.0 | 506.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
