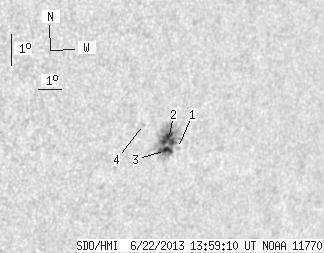

SDO HMI 2013-06-22 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.87 | 67.61 | 14.27 | 48.48 | -14.81 | 253.40 | 43.68 | 247.34 | 0.7258 | 771.0 | 421.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-06-22 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.38 | -14.98 | 253.90 | 44.17 | 247.31 | 0.7319 | -265.0 | -211.8 | |
| 12.25 | 64.34 | 8.79 | 46.15 | -14.68 | 253.43 | 43.70 | 247.51 | 0.7256 | 887.9 | 445.3 | |
| 7.62 | -2.00 | 5.48 | -2.00 | -15.03 | 253.38 | 43.66 | 247.04 | 0.7264 | 790.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -14.18 | 252.22 | 42.50 | 247.70 | 0.7103 | 676.0 | 544.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
