SDO HMI 2013-06-22 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.79 | 57.52 | 12.66 | 43.35 | -14.81 | 253.46 | 46.51 | 248.39 | 0.7567 | 838.0 | 483.8 | |
|
previous
or next observation for the same group /

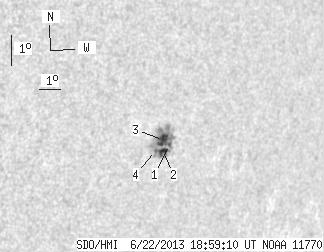

back to the solar disc SDO HMI 2013-06-22 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.00 | 57.52 | 0.76 | 43.35 | -14.81 | 253.74 | 46.79 | 248.48 | 0.7597 | 416.0 | 483.8 | |
| 5.17 | -1.00 | 3.91 | -1.00 | -15.03 | 253.52 | 46.57 | 248.13 | 0.7581 | 725.7 | 999999 | |
| 9.80 | -1.00 | 7.38 | -1.00 | -14.68 | 253.43 | 46.48 | 248.54 | 0.7559 | 940.5 | 999999 | |
| 0.82 | -1.00 | 0.61 | -1.00 | -14.99 | 253.15 | 46.20 | 248.05 | 0.7539 | 842.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
