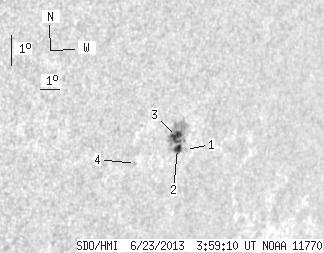

SDO HMI 2013-06-23 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.26 | 42.03 | 11.09 | 35.12 | -14.83 | 253.47 | 51.50 | 249.91 | 0.8078 | 669.9 | 405.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-06-23 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.92 | -15.11 | 254.04 | 52.07 | 249.74 | 0.8139 | -233.0 | -192.6 | |
| 4.45 | 40.12 | 3.74 | 33.54 | -15.06 | 253.61 | 51.64 | 249.67 | 0.8097 | 606.7 | 427.6 | |
| 8.81 | -2.00 | 7.35 | -2.00 | -14.68 | 253.43 | 51.46 | 250.08 | 0.8070 | 828.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -15.48 | 251.65 | 49.68 | 248.56 | 0.7916 | 644.0 | 493.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
