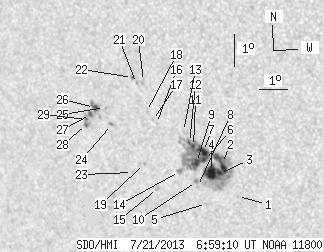

SDO HMI 2013-07-21 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.53 | 181.50 | 31.04 | 107.46 | -8.27 | 159.38 | -30.39 | 113.44 | 0.5477 | 444.2 | 152.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-07-21 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.48 | -9.45 | 160.90 | -28.86 | 116.53 | 0.5343 | 633.0 | 496.2 | |
| 11.25 | 141.20 | 6.59 | 83.10 | -8.44 | 160.43 | -29.34 | 114.43 | 0.5344 | 1150.1 | 298.6 | |
| 4.26 | -2.00 | 2.50 | -2.00 | -8.75 | 160.33 | -29.44 | 114.90 | 0.5376 | 1123.3 | 999999 | |
| 15.15 | -2.00 | 8.92 | -2.00 | -8.73 | 160.05 | -29.72 | 114.66 | 0.5413 | 1088.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -9.72 | 159.78 | -29.99 | 116.11 | 0.5508 | 535.0 | 458.8 | |
| 1.45 | -2.00 | 0.85 | -2.00 | -8.37 | 159.83 | -29.94 | 113.88 | 0.5420 | 742.5 | 999999 | |
| 6.26 | -2.00 | 3.68 | -2.00 | -8.09 | 159.82 | -29.95 | 113.39 | 0.5406 | 973.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -9.20 | 159.51 | -30.26 | 115.04 | 0.5512 | 441.0 | 407.2 | |
| 4.81 | -2.00 | 2.84 | -2.00 | -8.44 | 159.54 | -30.23 | 113.80 | 0.5464 | 735.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -9.04 | 159.49 | -30.28 | 114.77 | 0.5505 | 716.0 | 595.2 | |
| 1.36 | -2.00 | 0.80 | -2.00 | -7.95 | 159.48 | -30.29 | 112.91 | 0.5444 | 769.9 | 999999 | |
| 0.91 | -2.00 | 0.54 | -2.00 | -7.83 | 159.34 | -30.42 | 112.62 | 0.5456 | 623.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -7.49 | 159.16 | -30.61 | 111.92 | 0.5463 | 612.0 | 500.7 | |
| 0.00 | 2.99 | 0.00 | 1.78 | -8.75 | 158.90 | -30.86 | 113.88 | 0.5566 | 724.0 | 441.6 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -9.32 | 158.05 | -31.72 | 114.23 | 0.5710 | 767.0 | 500.1 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -7.29 | 158.20 | -31.56 | 110.96 | 0.5582 | -579.0 | -403.0 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -7.20 | 158.07 | -31.70 | 110.73 | 0.5596 | -638.0 | -488.7 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -6.93 | 157.87 | -31.90 | 110.15 | 0.5609 | -551.0 | -397.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -8.56 | 157.65 | -32.11 | 112.73 | 0.5721 | -824.0 | -626.6 | |
| 0.00 | 2.54 | 0.00 | 1.51 | -6.00 | 157.83 | -31.94 | 108.55 | 0.5571 | -435.0 | -599.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.07 | 157.57 | -32.20 | 108.53 | 0.5610 | -729.0 | -653.0 | |
| 0.54 | 1.72 | 0.33 | 1.03 | -5.89 | 157.44 | -32.33 | 108.15 | 0.5620 | -794.7 | -611.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -8.86 | 157.19 | -32.58 | 112.92 | 0.5798 | 497.0 | 317.6 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -7.39 | 156.55 | -33.21 | 110.16 | 0.5808 | -744.0 | -580.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -6.87 | 156.34 | -33.43 | 109.19 | 0.5813 | -662.0 | -661.4 | |
| 3.45 | 18.24 | 2.10 | 11.16 | -6.89 | 155.97 | -33.80 | 109.02 | 0.5863 | -917.2 | -643.2 | |
| 1.54 | -26.00 | 0.94 | -26.00 | -7.12 | 155.80 | -33.97 | 109.29 | 0.5896 | -828.9 | 999999 | |
| 0.91 | -26.00 | 0.56 | -26.00 | -7.44 | 155.63 | -34.14 | 109.71 | 0.5934 | -843.1 | 999999 | |
| 0.64 | -26.00 | 0.39 | -26.00 | -7.28 | 155.64 | -34.13 | 109.47 | 0.5925 | -787.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
