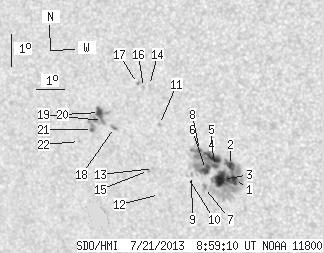

SDO HMI 2013-07-21 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.88 | 192.64 | 32.66 | 112.84 | -8.24 | 159.29 | -29.38 | 114.14 | 0.5340 | 451.8 | 98.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-07-21 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.99 | 149.63 | 2.89 | 87.06 | -8.76 | 160.58 | -28.09 | 115.96 | 0.5197 | 1211.3 | 294.0 | |
| 5.81 | -1.00 | 3.36 | -1.00 | -8.33 | 160.47 | -28.20 | 115.12 | 0.5184 | 1138.1 | 999999 | |
| 18.51 | -1.00 | 10.76 | -1.00 | -8.78 | 160.16 | -28.52 | 115.65 | 0.5255 | 1102.3 | 999999 | |
| 1.63 | -1.00 | 0.95 | -1.00 | -8.38 | 159.94 | -28.73 | 114.80 | 0.5259 | 544.1 | 999999 | |
| 9.07 | -1.00 | 5.28 | -1.00 | -8.10 | 159.86 | -28.81 | 114.25 | 0.5253 | 908.3 | 999999 | |
| 6.71 | -1.00 | 3.92 | -1.00 | -8.49 | 159.58 | -29.09 | 114.71 | 0.5314 | 718.0 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.97 | -9.05 | 159.50 | -29.18 | 115.62 | 0.5360 | 632.0 | 468.1 | |
| 1.36 | -1.00 | 0.79 | -1.00 | -7.90 | 159.42 | -29.25 | 113.57 | 0.5302 | 786.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.70 | 159.07 | -29.60 | 114.69 | 0.5395 | 592.0 | 411.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.73 | 158.92 | -29.75 | 114.64 | 0.5417 | 554.0 | 420.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.15 | 158.06 | -30.62 | 111.33 | 0.5446 | -574.0 | -403.3 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -9.34 | 157.86 | -30.81 | 114.90 | 0.5593 | 646.0 | 588.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -8.54 | 157.72 | -30.95 | 113.46 | 0.5565 | -696.0 | -556.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -5.95 | 157.78 | -30.89 | 109.08 | 0.5424 | -763.0 | -625.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -8.61 | 157.54 | -31.13 | 113.45 | 0.5594 | -788.0 | -668.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -6.02 | 157.56 | -31.11 | 109.07 | 0.5457 | -661.0 | -455.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -5.91 | 157.36 | -31.32 | 108.75 | 0.5481 | -672.0 | -621.8 | |
| 0.91 | 2.72 | 0.55 | 1.64 | -7.32 | 156.42 | -32.25 | 110.60 | 0.5676 | -771.3 | -596.7 | |
| 0.45 | 25.86 | 0.27 | 15.62 | -7.12 | 156.00 | -32.67 | 110.02 | 0.5723 | -984.0 | -675.2 | |
| 5.26 | -19.00 | 3.17 | -19.00 | -6.87 | 155.91 | -32.76 | 109.56 | 0.5723 | -980.8 | 999999 | |
| 1.18 | -19.00 | 0.72 | -19.00 | -7.42 | 155.61 | -33.06 | 110.28 | 0.5790 | -816.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -7.81 | 155.09 | -33.58 | 110.64 | 0.5877 | -657.0 | -527.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
