SDO HMI 2013-07-21 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.86 | 208.48 | 29.30 | 118.02 | -8.32 | 159.04 | -25.77 | 117.32 | 0.4860 | 396.6 | 170.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-07-21 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

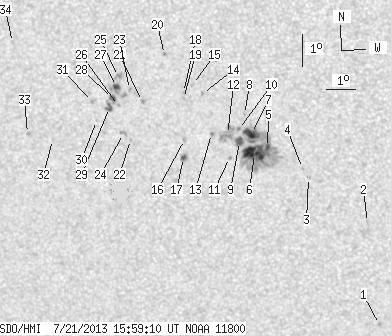

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.17 | 164.10 | -20.72 | 133.18 | 0.4723 | 863.0 | 688.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.92 | 163.98 | -20.84 | 127.46 | 0.4418 | 730.0 | 582.5 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -9.56 | 162.11 | -22.70 | 122.63 | 0.4538 | 691.0 | 627.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.28 | 161.93 | -22.88 | 121.90 | 0.4539 | 684.0 | 554.6 | |
| 2.27 | 122.96 | 1.27 | 68.92 | -8.66 | 160.79 | -24.02 | 119.51 | 0.4642 | 1209.6 | 477.8 | |
| 24.30 | -5.00 | 13.64 | -5.00 | -8.86 | 160.34 | -24.47 | 119.43 | 0.4719 | 1100.5 | 999999 | |
| 10.61 | -5.00 | 5.94 | -5.00 | -8.24 | 160.28 | -24.53 | 118.20 | 0.4681 | 1048.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.65 | 160.08 | -24.73 | 116.88 | 0.4667 | 788.0 | 578.7 | |
| 4.35 | -5.00 | 2.45 | -5.00 | -8.51 | 159.86 | -24.96 | 118.28 | 0.4758 | 808.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.13 | 159.85 | -24.96 | 117.57 | 0.4732 | 844.0 | 741.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -9.02 | 159.48 | -25.33 | 118.87 | 0.4845 | 682.0 | 596.0 | |
| 0.00 | 16.96 | 0.00 | 9.56 | -8.30 | 159.46 | -25.35 | 117.53 | 0.4797 | -124.0 | 183.5 | |
| 0.36 | 1.45 | 0.21 | 0.82 | -8.29 | 158.92 | -25.90 | 117.01 | 0.4870 | 714.2 | 604.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -7.05 | 158.69 | -26.12 | 114.49 | 0.4820 | -598.0 | -525.8 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -6.78 | 158.37 | -26.45 | 113.71 | 0.4849 | -685.0 | -547.6 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -8.51 | 157.97 | -26.84 | 116.58 | 0.5013 | -456.0 | -445.4 | |
| 1.90 | 3.36 | 1.09 | 1.92 | -9.08 | 157.89 | -26.92 | 117.53 | 0.5062 | 804.8 | 573.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -7.05 | 158.04 | -26.77 | 113.94 | 0.4911 | 798.0 | 711.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.23 | 158.03 | -26.78 | 114.28 | 0.4924 | 816.0 | 562.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.89 | 157.46 | -27.36 | 111.30 | 0.4926 | -819.0 | -617.8 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -7.38 | 156.60 | -28.21 | 113.43 | 0.5130 | -902.0 | -765.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.59 | 156.08 | -28.73 | 115.18 | 0.5272 | 448.0 | 364.3 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -7.03 | 156.17 | -28.64 | 112.48 | 0.5169 | -914.0 | -759.7 | |
| 0.00 | 3.26 | 0.00 | 1.90 | -8.41 | 155.85 | -28.96 | 114.69 | 0.5293 | 721.0 | 596.1 | |
| 0.00 | 4.35 | 0.00 | 2.52 | -6.64 | 155.81 | -29.00 | 111.52 | 0.5197 | -844.0 | -653.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -7.54 | 155.74 | -29.07 | 113.09 | 0.5256 | -780.0 | -645.6 | |
| 2.99 | 27.02 | 1.74 | 15.72 | -6.95 | 155.72 | -29.10 | 112.02 | 0.5227 | -1003.5 | -678.2 | |
| 2.54 | -27.00 | 1.48 | -27.00 | -7.33 | 155.55 | -29.26 | 112.58 | 0.5271 | -934.3 | 999999 | |
| 2.54 | -27.00 | 1.48 | -27.00 | -7.62 | 155.42 | -29.39 | 112.99 | 0.5305 | -797.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.05 | 154.93 | -29.89 | 113.38 | 0.5396 | -710.0 | -526.2 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -7.46 | 154.83 | -29.98 | 112.30 | 0.5376 | -696.0 | -438.1 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -8.71 | 153.29 | -31.52 | 113.38 | 0.5652 | 526.0 | 435.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -8.56 | 152.39 | -32.42 | 112.56 | 0.5762 | -730.0 | -602.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -5.75 | 152.08 | -32.73 | 107.71 | 0.5669 | -593.0 | -395.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
