SDO HMI 2013-07-21 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.27 | 212.25 | 23.60 | 118.41 | -8.43 | 159.27 | -23.88 | 119.37 | 0.4614 | 311.0 | 307.3 | |
|
previous
or next observation for the same group /

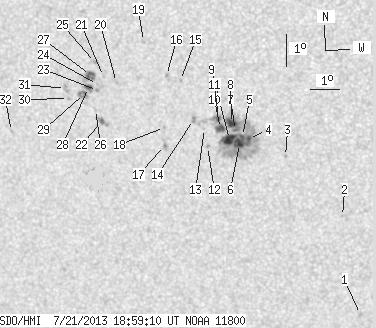

back to the solar disc SDO HMI 2013-07-21 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.31 | -14.26 | 164.17 | -18.98 | 135.84 | 0.4543 | 847.0 | 578.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -11.14 | 163.82 | -19.32 | 130.00 | 0.4256 | 689.0 | 555.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.30 | 162.07 | -21.08 | 124.12 | 0.4305 | 924.0 | 802.2 | |
| 2.45 | 150.22 | 1.35 | 83.13 | -8.78 | 160.87 | -22.27 | 121.65 | 0.4419 | 1241.3 | 501.1 | |
| 0.73 | -4.00 | 0.40 | -4.00 | -8.72 | 160.68 | -22.47 | 121.32 | 0.4440 | 1280.9 | 999999 | |
| 5.08 | -4.00 | 2.81 | -4.00 | -8.94 | 160.56 | -22.58 | 121.62 | 0.4474 | 1195.5 | 999999 | |
| 1.09 | -4.00 | 0.60 | -4.00 | -8.54 | 160.46 | -22.69 | 120.72 | 0.4456 | 1215.7 | 999999 | |
| 6.44 | -4.00 | 3.56 | -4.00 | -8.33 | 160.34 | -22.81 | 120.16 | 0.4455 | 1131.6 | 999999 | |
| 8.70 | -4.00 | 4.83 | -4.00 | -8.83 | 160.24 | -22.91 | 121.03 | 0.4508 | 1152.4 | 999999 | |
| 4.99 | -4.00 | 2.77 | -4.00 | -8.49 | 159.96 | -23.19 | 120.08 | 0.4519 | 791.4 | 999999 | |
| 2.18 | -4.00 | 1.21 | -4.00 | -8.18 | 159.91 | -23.24 | 119.42 | 0.4502 | 819.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -9.07 | 159.48 | -23.67 | 120.68 | 0.4628 | 748.0 | 643.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.51 | 159.42 | -23.73 | 119.55 | 0.4593 | 513.0 | 427.6 | |
| 0.00 | 2.99 | 0.00 | 1.67 | -8.24 | 159.07 | -24.08 | 118.67 | 0.4621 | 740.0 | 579.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.04 | 158.70 | -24.45 | 115.97 | 0.4587 | -649.0 | -380.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -6.90 | 158.24 | -24.91 | 115.27 | 0.4643 | 849.0 | 757.0 | |
| 0.00 | 4.08 | 0.00 | 2.30 | -9.09 | 158.02 | -25.13 | 119.23 | 0.4824 | 834.0 | 651.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.53 | 158.06 | -25.08 | 118.22 | 0.4778 | -641.0 | -500.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.87 | 157.51 | -25.63 | 112.62 | 0.4681 | -690.0 | -556.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -7.18 | 156.51 | -26.63 | 114.33 | 0.4901 | -797.0 | -698.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.01 | 156.08 | -27.07 | 113.66 | 0.4951 | -932.0 | -638.6 | |
| 1.45 | 6.07 | 0.83 | 3.48 | -8.42 | 155.91 | -27.24 | 116.10 | 0.5062 | 783.9 | 620.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -7.46 | 155.84 | -27.31 | 114.30 | 0.5011 | -887.0 | -758.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -7.27 | 155.85 | -27.29 | 113.96 | 0.4998 | -867.0 | -691.5 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -6.59 | 155.83 | -27.32 | 112.67 | 0.4961 | -950.0 | -670.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -8.06 | 155.73 | -27.42 | 115.29 | 0.5063 | 400.0 | 378.3 | |
| 5.35 | 10.43 | 3.06 | 5.96 | -7.00 | 155.63 | -27.52 | 113.29 | 0.5012 | -985.0 | -570.5 | |
| 2.72 | 12.78 | 1.56 | 7.34 | -7.38 | 155.53 | -27.61 | 113.90 | 0.5048 | -998.8 | -701.0 | |
| 1.09 | -28.00 | 0.62 | -28.00 | -7.57 | 155.38 | -27.77 | 114.14 | 0.5081 | -900.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -7.75 | 154.81 | -28.34 | 114.02 | 0.5169 | -768.0 | -602.2 | |
| 0.00 | 3.63 | 0.00 | 2.09 | -7.44 | 154.73 | -28.42 | 113.41 | 0.5162 | -714.0 | -630.0 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -8.87 | 152.70 | -30.45 | 114.40 | 0.5519 | -636.0 | -539.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
