SDO HMI 2013-07-21 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.96 | 213.88 | 27.29 | 118.89 | -8.46 | 159.18 | -23.41 | 119.97 | 0.4555 | 400.0 | 322.4 | |
|
previous
or next observation for the same group /

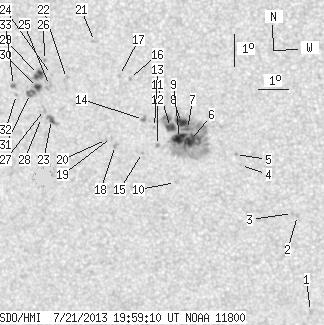

back to the solar disc SDO HMI 2013-07-21 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.35 | -14.21 | 164.18 | -18.41 | 136.63 | 0.4476 | 785.0 | 523.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -11.15 | 163.99 | -18.60 | 131.10 | 0.4170 | 783.0 | 701.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.09 | 163.83 | -18.76 | 130.75 | 0.4183 | 693.0 | 579.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -9.62 | 162.22 | -20.37 | 125.67 | 0.4242 | 798.0 | 608.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -9.28 | 162.08 | -20.52 | 124.81 | 0.4230 | 910.0 | 754.4 | |
| 9.43 | 141.15 | 5.19 | 77.79 | -8.89 | 160.61 | -21.98 | 122.22 | 0.4389 | 1186.5 | 516.6 | |
| 1.09 | -6.00 | 0.60 | -6.00 | -8.55 | 160.54 | -22.06 | 121.46 | 0.4372 | 1264.8 | 999999 | |
| 6.98 | -6.00 | 3.84 | -6.00 | -8.33 | 160.35 | -22.24 | 120.82 | 0.4380 | 1118.4 | 999999 | |
| 9.88 | -6.00 | 5.46 | -6.00 | -8.84 | 160.25 | -22.34 | 121.70 | 0.4433 | 1131.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.23 | 160.02 | -22.58 | 124.06 | 0.4579 | 775.0 | 539.3 | |
| 5.35 | -6.00 | 2.95 | -6.00 | -8.50 | 159.97 | -22.62 | 120.73 | 0.4444 | 816.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -9.08 | 159.50 | -23.10 | 121.32 | 0.4553 | 775.0 | 561.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.52 | 159.44 | -23.16 | 120.17 | 0.4517 | 507.0 | 390.6 | |
| 0.54 | 3.35 | 0.30 | 1.86 | -8.28 | 159.08 | -23.51 | 119.34 | 0.4547 | 710.2 | 549.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.32 | 158.98 | -23.62 | 121.20 | 0.4641 | 681.0 | 535.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.02 | 158.69 | -23.90 | 116.45 | 0.4510 | -603.0 | -388.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.93 | 158.36 | -24.24 | 115.97 | 0.4551 | 894.0 | 686.4 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -9.13 | 158.08 | -24.52 | 119.91 | 0.4745 | 975.0 | 754.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.88 | 157.96 | -24.63 | 119.33 | 0.4743 | 709.0 | 534.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.95 | 157.78 | -24.81 | 119.29 | 0.4771 | 330.0 | 335.1 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -5.91 | 157.57 | -25.02 | 113.20 | 0.4597 | -812.0 | -477.8 | |
| 0.00 | 3.08 | 0.00 | 1.74 | -7.09 | 156.55 | -26.04 | 114.66 | 0.4814 | -827.0 | -733.3 | |
| 2.63 | 7.43 | 1.50 | 4.24 | -8.40 | 155.94 | -26.65 | 116.56 | 0.4981 | 756.2 | 500.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -6.99 | 156.04 | -26.55 | 114.04 | 0.4878 | -808.0 | -613.1 | |
| 0.00 | 4.08 | 0.00 | 2.32 | -7.33 | 155.95 | -26.64 | 114.61 | 0.4912 | -838.0 | -705.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.56 | 155.83 | -26.76 | 113.06 | 0.4882 | -910.0 | -726.6 | |
| 0.00 | 2.81 | 0.00 | 1.60 | -8.09 | 155.73 | -26.87 | 115.82 | 0.4990 | 584.0 | 317.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -8.35 | 155.60 | -26.99 | 116.18 | 0.5024 | 441.0 | 291.6 | |
| 5.26 | 25.66 | 2.99 | 14.64 | -7.01 | 155.59 | -27.00 | 113.71 | 0.4941 | -960.8 | -527.1 | |
| 3.63 | -29.00 | 2.07 | -29.00 | -7.41 | 155.53 | -27.06 | 114.42 | 0.4974 | -972.9 | 999999 | |
| 3.26 | -29.00 | 1.87 | -29.00 | -7.61 | 155.28 | -27.32 | 114.57 | 0.5022 | -855.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -7.66 | 154.79 | -27.81 | 114.28 | 0.5092 | -686.0 | -572.6 | |
| 0.91 | 2.63 | 0.52 | 1.51 | -7.38 | 154.70 | -27.89 | 113.71 | 0.5087 | -784.7 | -596.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
