SDO HMI 2013-07-21 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.96 | 203.45 | 28.79 | 112.45 | -8.48 | 159.36 | -22.68 | 120.81 | 0.4458 | 373.1 | 315.4 | |
|
previous
or next observation for the same group /

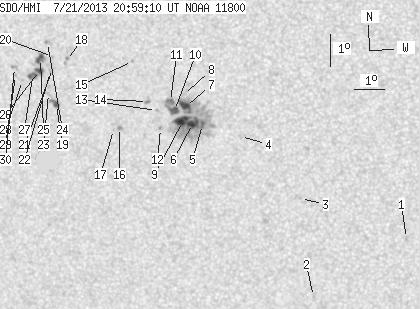

back to the solar disc SDO HMI 2013-07-21 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.97 | -12.35 | 167.36 | -14.68 | 139.98 | 0.3866 | 768.0 | 589.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.29 | 164.19 | -17.85 | 137.62 | 0.4426 | 790.0 | 629.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.16 | 163.99 | -18.05 | 131.99 | 0.4106 | 756.0 | 662.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -9.26 | 162.15 | -19.89 | 125.61 | 0.4147 | 680.0 | 657.6 | |
| 2.36 | 144.06 | 1.29 | 79.06 | -8.92 | 160.92 | -21.12 | 123.33 | 0.4278 | 1125.8 | 490.6 | |
| 8.98 | -5.00 | 4.92 | -5.00 | -8.90 | 160.59 | -21.45 | 122.88 | 0.4320 | 1227.8 | 999999 | |
| 8.07 | -5.00 | 4.42 | -5.00 | -8.37 | 160.39 | -21.65 | 121.60 | 0.4303 | 1161.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -8.00 | 160.35 | -21.69 | 120.80 | 0.4279 | 578.0 | 441.4 | |
| 10.15 | -5.00 | 5.58 | -5.00 | -8.84 | 160.26 | -21.78 | 122.39 | 0.4359 | 1121.3 | 999999 | |
| 5.08 | -5.00 | 2.79 | -5.00 | -8.51 | 160.02 | -22.02 | 121.43 | 0.4364 | 847.6 | 999999 | |
| 2.63 | -5.00 | 1.45 | -5.00 | -8.23 | 159.90 | -22.14 | 120.75 | 0.4358 | 734.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.09 | 159.51 | -22.53 | 121.98 | 0.4478 | 789.0 | 652.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.53 | 159.42 | -22.62 | 120.79 | 0.4446 | 532.0 | 377.1 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -8.25 | 159.13 | -22.91 | 119.94 | 0.4463 | 746.0 | 594.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.02 | 158.70 | -23.33 | 117.03 | 0.4432 | -540.0 | -424.9 | |
| 0.36 | 1.81 | 0.20 | 1.01 | -9.10 | 158.13 | -23.90 | 120.50 | 0.4662 | 988.5 | 759.6 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -9.17 | 157.93 | -24.11 | 120.41 | 0.4695 | 597.0 | 519.6 | |
| 0.00 | 2.99 | 0.00 | 1.68 | -7.07 | 156.47 | -25.56 | 115.04 | 0.4746 | -853.0 | -753.0 | |
| 2.45 | 5.71 | 1.39 | 3.24 | -8.46 | 156.04 | -26.00 | 117.26 | 0.4897 | 780.9 | 603.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.96 | 156.00 | -26.04 | 114.43 | 0.4805 | -823.0 | -654.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.34 | 155.98 | -26.06 | 115.12 | 0.4831 | -888.0 | -723.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.43 | 155.90 | -26.13 | 115.24 | 0.4848 | -861.0 | -767.5 | |
| 0.00 | 2.81 | 0.00 | 1.60 | -8.12 | 155.79 | -26.25 | 116.42 | 0.4909 | 551.0 | 388.5 | |
| 0.00 | 2.72 | 0.00 | 1.53 | -6.53 | 155.86 | -26.18 | 113.49 | 0.4798 | -593.0 | -452.2 | |
| 4.35 | 8.98 | 2.47 | 5.09 | -7.04 | 155.59 | -26.45 | 114.23 | 0.4867 | -993.3 | -635.2 | |
| 3.54 | 11.88 | 2.01 | 6.75 | -7.42 | 155.53 | -26.51 | 114.89 | 0.4899 | -983.7 | -737.2 | |
| 3.99 | -26.00 | 2.27 | -26.00 | -7.61 | 155.27 | -26.76 | 115.04 | 0.4946 | -871.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.75 | 154.92 | -27.12 | 115.00 | 0.5004 | -763.0 | -557.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.61 | 154.69 | -27.35 | 114.55 | 0.5026 | -655.0 | -474.4 | |
| 0.00 | 3.17 | 0.00 | 1.81 | -7.36 | 154.67 | -27.37 | 114.08 | 0.5014 | -788.0 | -647.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
